Intro(DLL | SO | 静态链接库 | 动态链接库 | 程序员的自我修养–链接、装载与库(高清带完整书签版).pdf.[阅读笔记]) #
使用工具 #

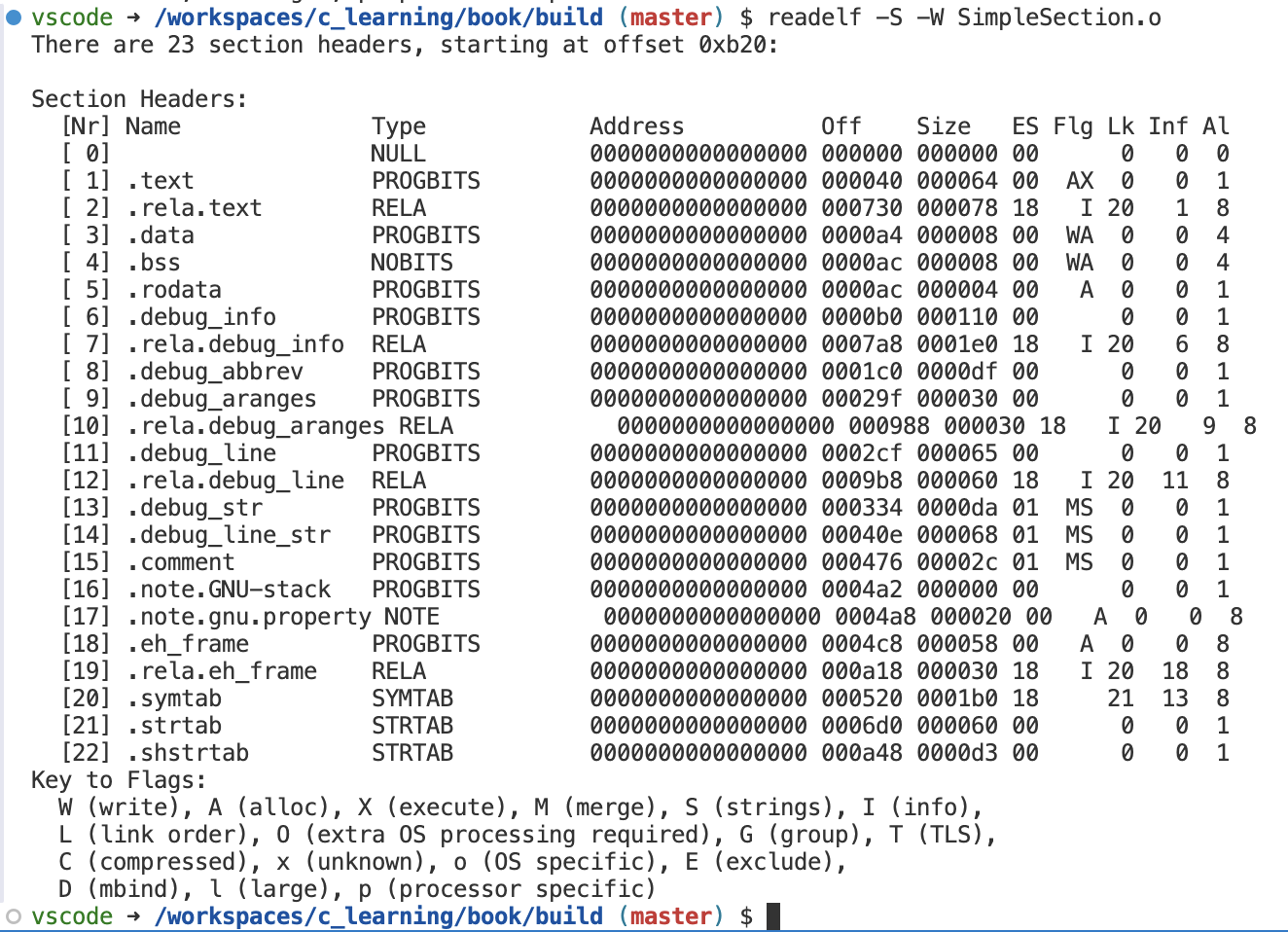

- readelf objdump nm 查看段头 section-header readelf -S SimpleSection.o

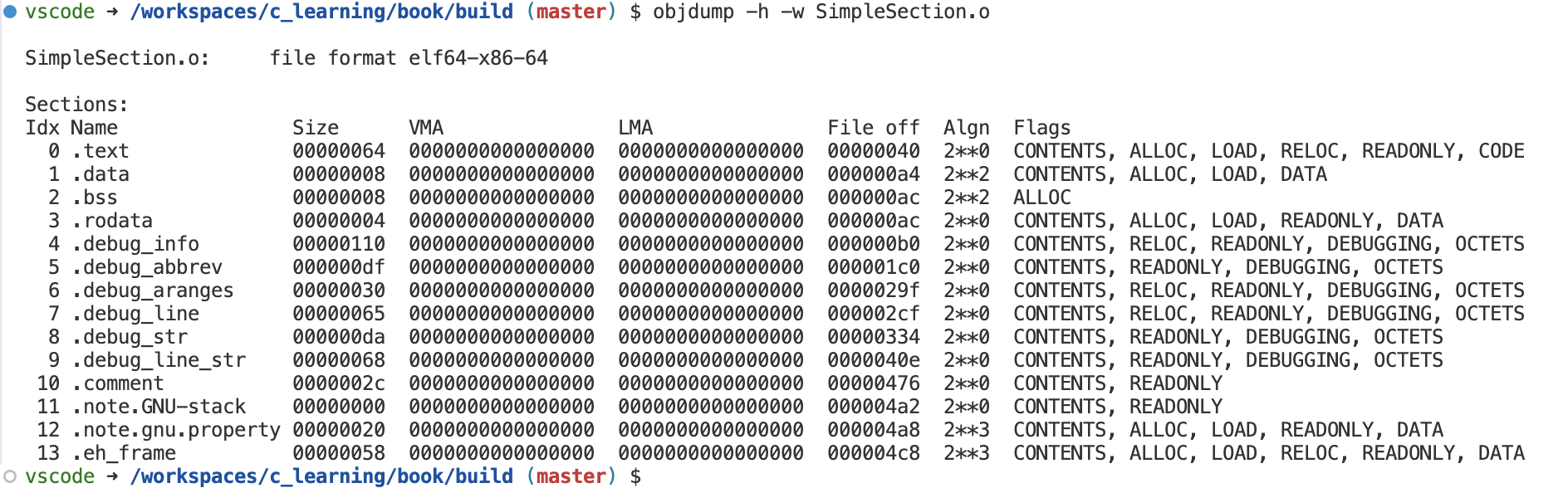

objdump -h SimpleSection.o

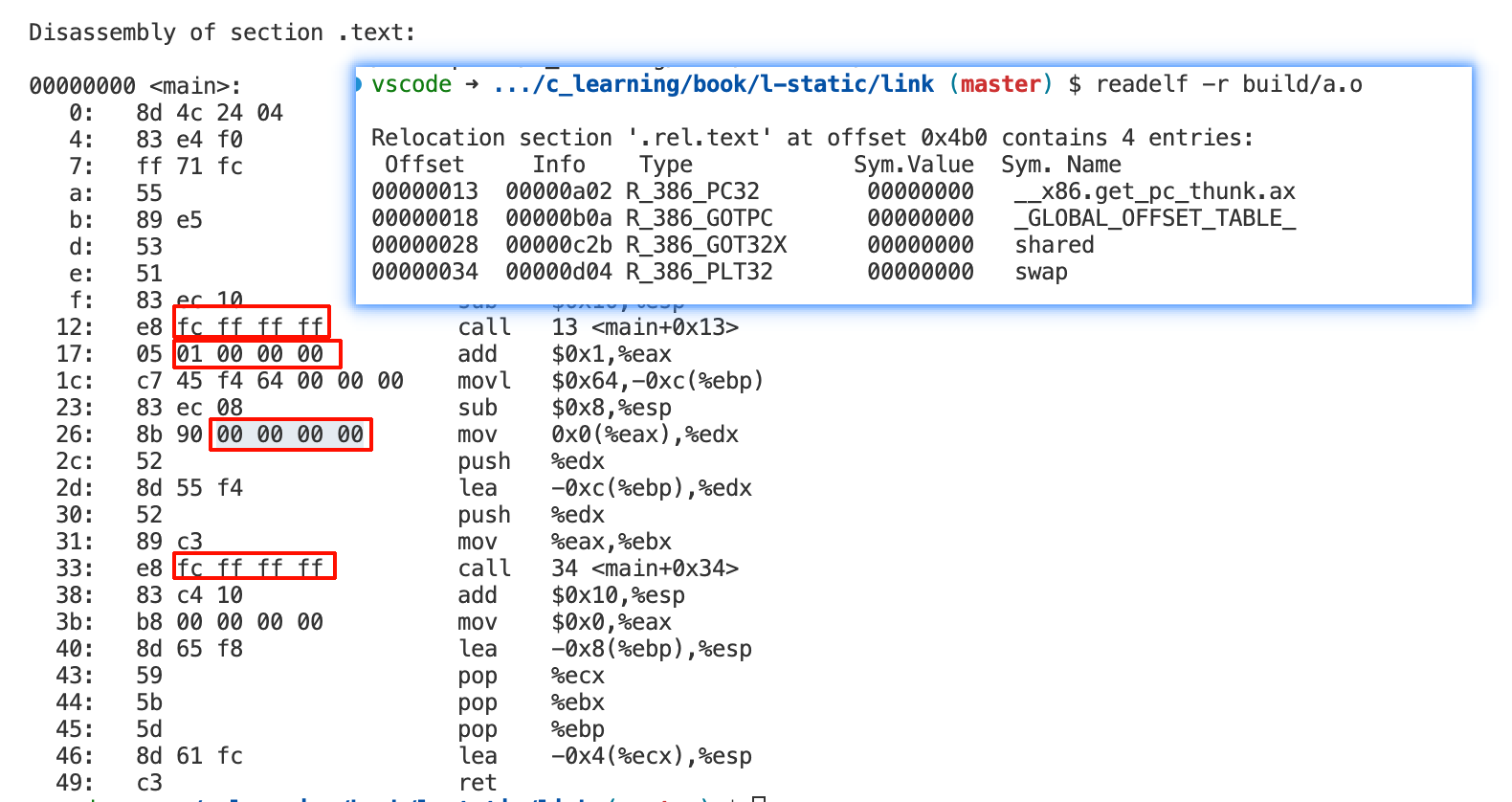

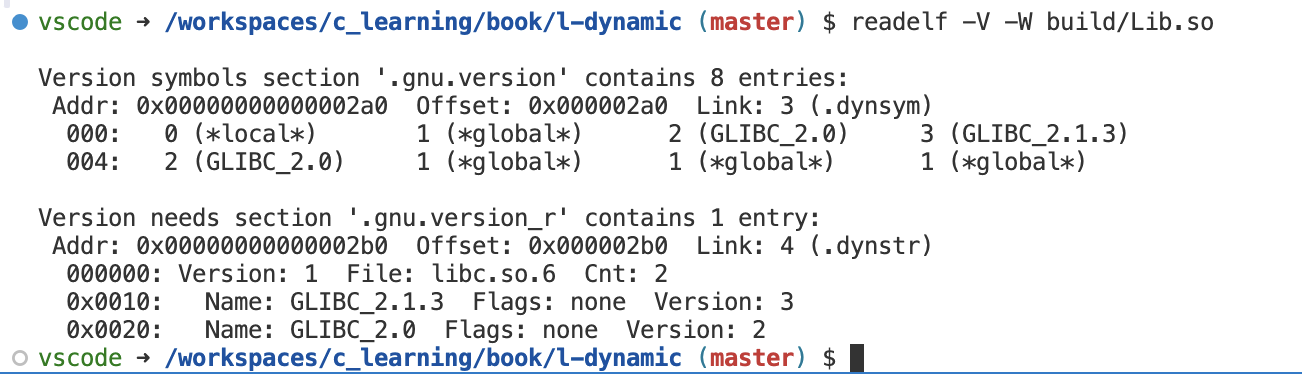

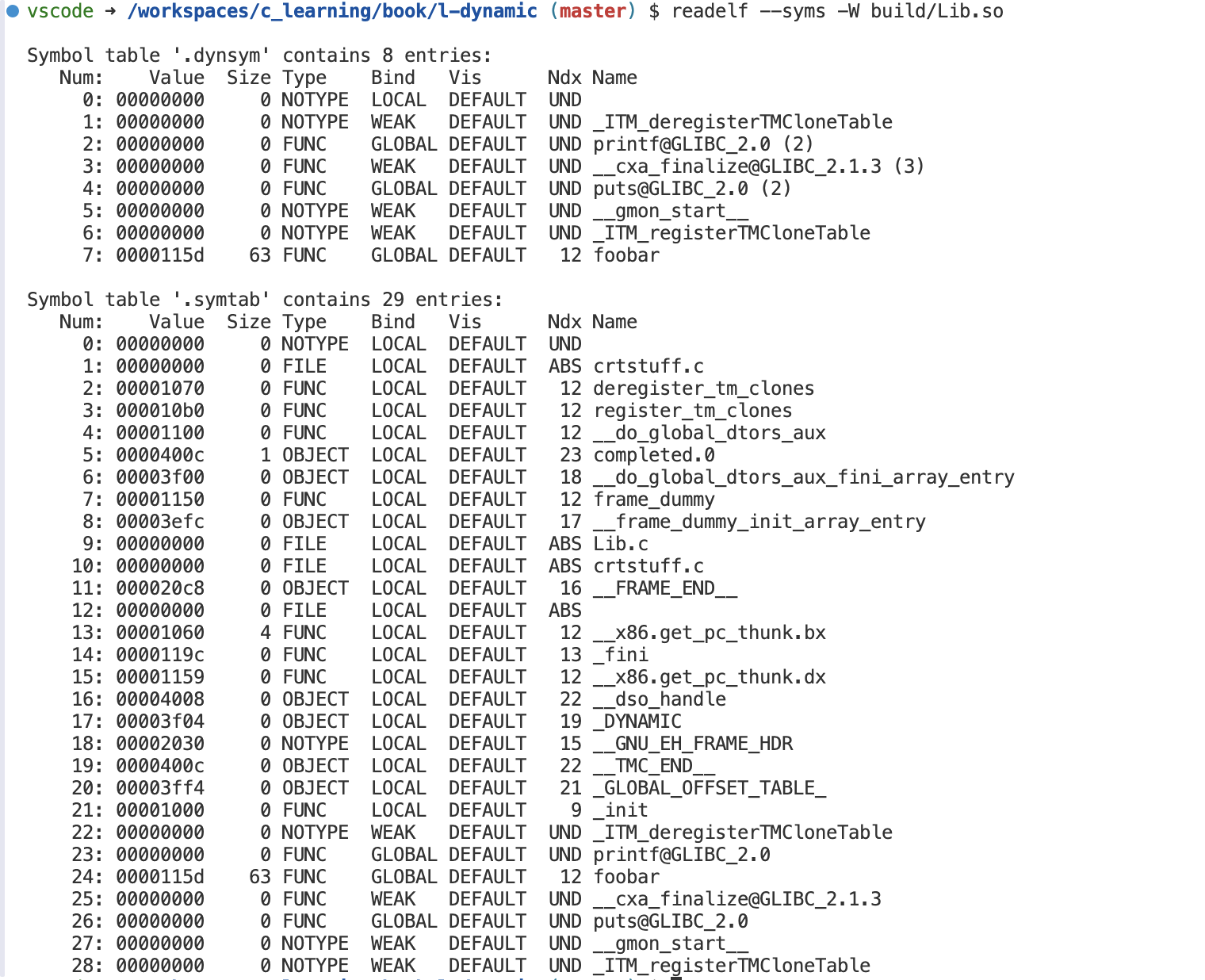

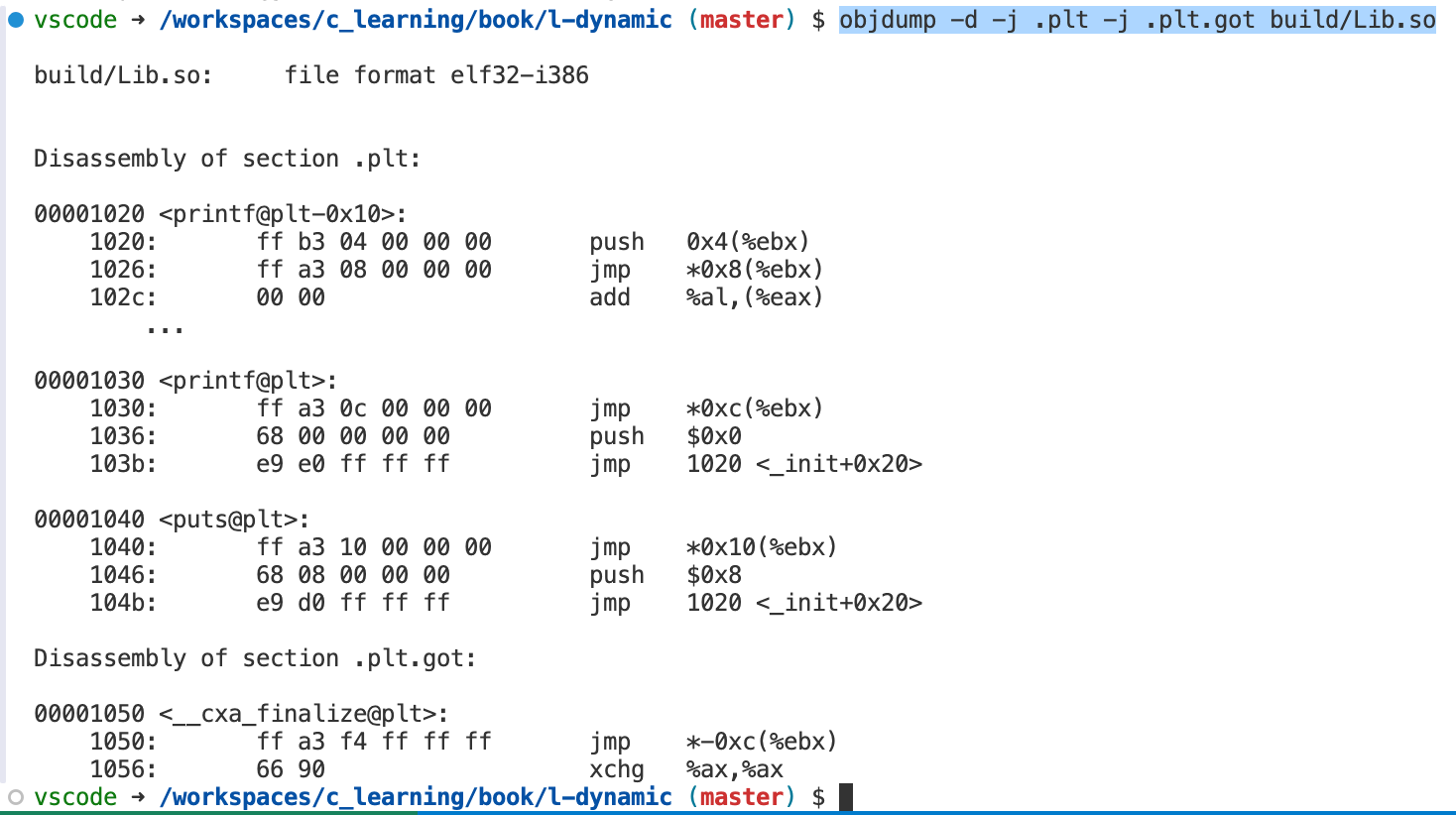

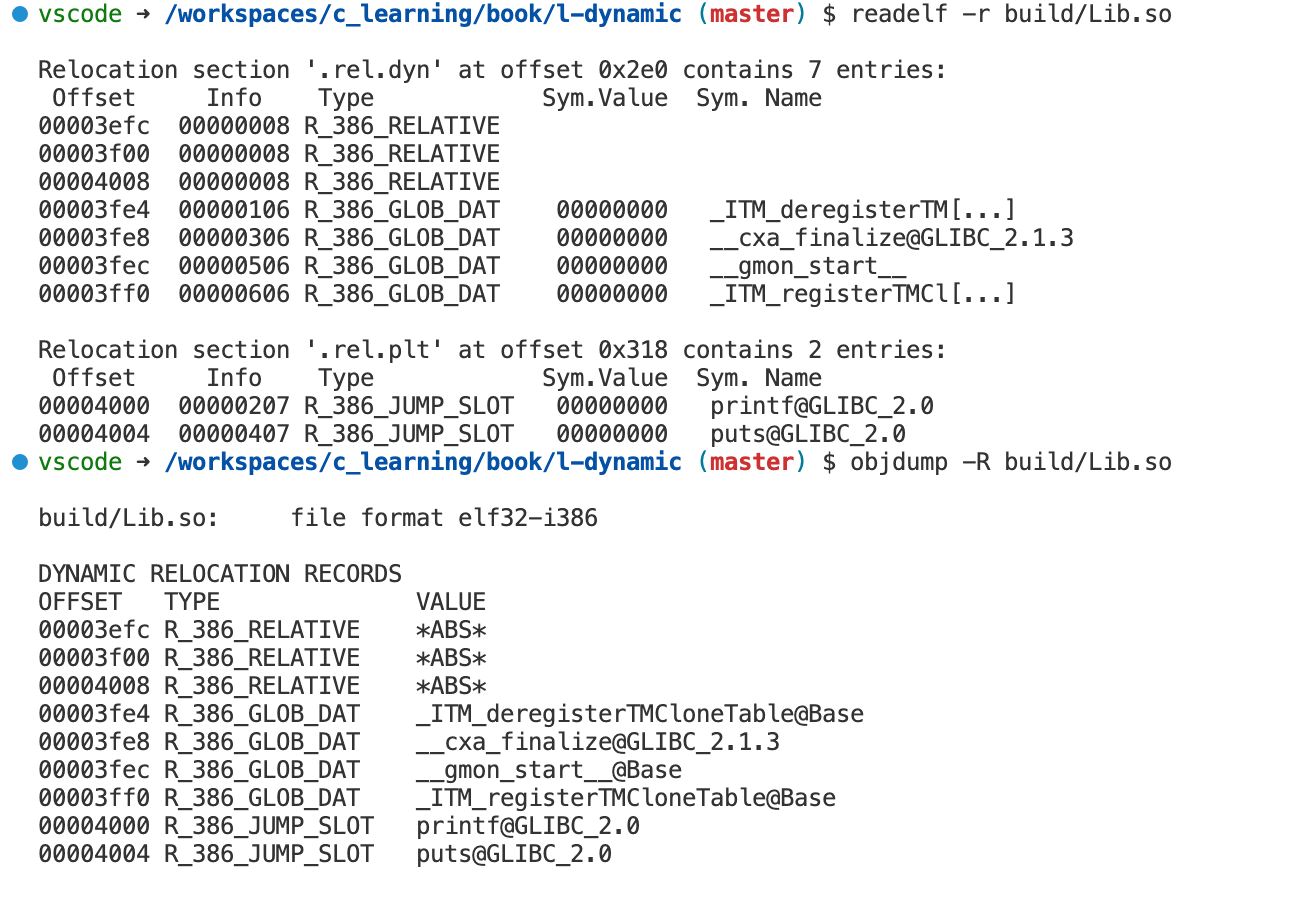

– 查看代码 .text.* – objdump -d -S -w build/a.o– 查看重定位 .rel* readelf -r -W build/Lib.soobjdump -r -w build/a.o– 查看动态符号 .dynsym readelf --dyn-syms -W /bin/catreadelf -sD -W /bin/catobjdump -t -w build/ab– 查看版本 .gnu.* readelf -V -W /bin/cat– – 查看动态字符表 .dynstr readelf -p .dynstr /bin/cat– – 查看跳转 .plt – objdump -d -j .plt /bin/cat– 查看符号 – – – 另外还有，file、size等
vscode ➜ /workspaces/c_learning (master) $ readelf --help Usage: readelf <option(s)> elf-file(s) Display information about the contents of ELF format files Options are: -a --all Equivalent to: -h -l -S -s -r -d -V -A -I -h --file-header Display the ELF file header -l --program-headers Display the program headers --segments An alias for --program-headers -S --section-headers Display the sections' header --sections An alias for --section-headers -g --section-groups Display the section groups -t --section-details Display the section details -e --headers Equivalent to: -h -l -S -s --syms Display the symbol table --symbols An alias for --syms --dyn-syms Display the dynamic symbol table --lto-syms Display LTO symbol tables --sym-base=[0|8|10|16] Force base for symbol sizes. The options are mixed (the default), octal, decimal, hexadecimal. -C --demangle[=STYLE] Decode mangled/processed symbol names STYLE can be "none", "auto", "gnu-v3", "java", "gnat", "dlang", "rust" --no-demangle Do not demangle low-level symbol names. (default) --recurse-limit Enable a demangling recursion limit. (default) --no-recurse-limit Disable a demangling recursion limit -U[dlexhi] --unicode=[default|locale|escape|hex|highlight|invalid] Display unicode characters as determined by the current locale (default), escape sequences, "<hex sequences>", highlighted escape sequences, or treat them as invalid and display as "{hex sequences}" -X --extra-sym-info Display extra information when showing symbols --no-extra-sym-info Do not display extra information when showing symbols (default) -n --notes Display the contents of note sections (if present) -r --relocs Display the relocations (if present) -u --unwind Display the unwind info (if present) -d --dynamic Display the dynamic section (if present) -V --version-info Display the version sections (if present) -A --arch-specific Display architecture specific information (if any) -c --archive-index Display the symbol/file index in an archive -D --use-dynamic Use the dynamic section info when displaying symbols -L --lint|--enable-checks Display warning messages for possible problems -x --hex-dump=<number|name> Dump the contents of section <number|name> as bytes -p --string-dump=<number|name> Dump the contents of section <number|name> as strings -R --relocated-dump=<number|name> Dump the relocated contents of section <number|name> -z --decompress Decompress section before dumping it -w --debug-dump[a/=abbrev, A/=addr, r/=aranges, c/=cu_index, L/=decodedline, f/=frames, F/=frames-interp, g/=gdb_index, i/=info, o/=loc, m/=macro, p/=pubnames, t/=pubtypes, R/=Ranges, l/=rawline, s/=str, O/=str-offsets, u/=trace_abbrev, T/=trace_aranges, U/=trace_info] Display the contents of DWARF debug sections -wk --debug-dump=links Display the contents of sections that link to separate debuginfo files -P --process-links Display the contents of non-debug sections in separate debuginfo files. (Implies -wK) -wK --debug-dump=follow-links Follow links to separate debug info files (default) -wN --debug-dump=no-follow-links Do not follow links to separate debug info files --dwarf-depth=N Do not display DIEs at depth N or greater --dwarf-start=N Display DIEs starting at offset N --ctf=<number|name> Display CTF info from section <number|name> --ctf-parent=<name> Use CTF archive member <name> as the CTF parent --ctf-symbols=<number|name> Use section <number|name> as the CTF external symtab --ctf-strings=<number|name> Use section <number|name> as the CTF external strtab --sframe[=NAME] Display SFrame info from section NAME, (default '.sframe') -I --histogram Display histogram of bucket list lengths -W --wide Allow output width to exceed 80 characters -T --silent-truncation If a symbol name is truncated, do not add [...] suffix @<file> Read options from <file> -H --help Display this information -v --version Display the version number of readelf Report bugs to <https://sourceware.org/bugzilla/>vscode ➜ /workspaces/c_learning (master) $ objdump --help Usage: objdump <option(s)> <file(s)> Display information from object <file(s)>. At least one of the following switches must be given: -a, --archive-headers Display archive header information -f, --file-headers Display the contents of the overall file header -p, --private-headers Display object format specific file header contents -P, --private=OPT,OPT... Display object format specific contents -h, --[section-]headers Display the contents of the section headers -x, --all-headers Display the contents of all headers -d, --disassemble Display assembler contents of executable sections -D, --disassemble-all Display assembler contents of all sections --disassemble=<sym> Display assembler contents from <sym> -S, --source Intermix source code with disassembly --source-comment[=<txt>] Prefix lines of source code with <txt> -s, --full-contents Display the full contents of all sections requested -Z, --decompress Decompress section(s) before displaying their contents -g, --debugging Display debug information in object file -e, --debugging-tags Display debug information using ctags style -G, --stabs Display (in raw form) any STABS info in the file -W, --dwarf[a/=abbrev, A/=addr, r/=aranges, c/=cu_index, L/=decodedline, f/=frames, F/=frames-interp, g/=gdb_index, i/=info, o/=loc, m/=macro, p/=pubnames, t/=pubtypes, R/=Ranges, l/=rawline, s/=str, O/=str-offsets, u/=trace_abbrev, T/=trace_aranges, U/=trace_info] Display the contents of DWARF debug sections -Wk,--dwarf=links Display the contents of sections that link to separate debuginfo files -WK,--dwarf=follow-links Follow links to separate debug info files (default) -WN,--dwarf=no-follow-links Do not follow links to separate debug info files -L, --process-links Display the contents of non-debug sections in separate debuginfo files. (Implies -WK) --ctf[=SECTION] Display CTF info from SECTION, (default `.ctf') --sframe[=SECTION] Display SFrame info from SECTION, (default '.sframe') -t, --syms Display the contents of the symbol table(s) -T, --dynamic-syms Display the contents of the dynamic symbol table -r, --reloc Display the relocation entries in the file -R, --dynamic-reloc Display the dynamic relocation entries in the file @<file> Read options from <file> -v, --version Display this program's version number -i, --info List object formats and architectures supported -H, --help Display this information The following switches are optional: -b, --target=BFDNAME Specify the target object format as BFDNAME -m, --architecture=MACHINE Specify the target architecture as MACHINE -j, --section=NAME Only display information for section NAME -M, --disassembler-options=OPT Pass text OPT on to the disassembler -EB --endian=big Assume big endian format when disassembling -EL --endian=little Assume little endian format when disassembling --file-start-context Include context from start of file (with -S) -I, --include=DIR Add DIR to search list for source files -l, --line-numbers Include line numbers and filenames in output -F, --file-offsets Include file offsets when displaying information -C, --demangle[=STYLE] Decode mangled/processed symbol names STYLE can be "none", "auto", "gnu-v3", "java", "gnat", "dlang", "rust" --recurse-limit Enable a limit on recursion whilst demangling (default) --no-recurse-limit Disable a limit on recursion whilst demangling -w, --wide Format output for more than 80 columns -U[d|l|i|x|e|h] Controls the display of UTF-8 unicode characters --unicode=[default|locale|invalid|hex|escape|highlight] -z, --disassemble-zeroes Do not skip blocks of zeroes when disassembling --start-address=ADDR Only process data whose address is >= ADDR --stop-address=ADDR Only process data whose address is < ADDR --no-addresses Do not print address alongside disassembly --prefix-addresses Print complete address alongside disassembly --[no-]show-raw-insn Display hex alongside symbolic disassembly --insn-width=WIDTH Display WIDTH bytes on a single line for -d --adjust-vma=OFFSET Add OFFSET to all displayed section addresses --show-all-symbols When disassembling, display all symbols at a given address --special-syms Include special symbols in symbol dumps --inlines Print all inlines for source line (with -l) --prefix=PREFIX Add PREFIX to absolute paths for -S --prefix-strip=LEVEL Strip initial directory names for -S --dwarf-depth=N Do not display DIEs at depth N or greater --dwarf-start=N Display DIEs starting at offset N --dwarf-check Make additional dwarf consistency checks. --ctf-parent=NAME Use CTF archive member NAME as the CTF parent --visualize-jumps Visualize jumps by drawing ASCII art lines --visualize-jumps=color Use colors in the ASCII art --visualize-jumps=extended-color Use extended 8-bit color codes --visualize-jumps=off Disable jump visualization --disassembler-color=off Disable disassembler color output. (default) --disassembler-color=terminal Enable disassembler color output if displaying on a terminal. --disassembler-color=on Enable disassembler color output. --disassembler-color=extended Use 8-bit colors in disassembler output. objdump: supported targets: elf64-x86-64 elf32-i386 elf32-iamcu elf32-x86-64 pei-i386 pe-x86-64 pei-x86-64 elf64-little elf64-big elf32-little elf32-big pe-bigobj-x86-64 pe-i386 pdb srec symbolsrec verilog tekhex binary ihex plugin objdump: supported architectures: i386 i386:x86-64 i386:x64-32 i8086 i386:intel i386:x86-64:intel i386:x64-32:intel iamcu iamcu:intel The following i386/x86-64 specific disassembler options are supported for use with the -M switch (multiple options should be separated by commas): x86-64 Disassemble in 64bit mode i386 Disassemble in 32bit mode i8086 Disassemble in 16bit mode att Display instruction in AT&T syntax intel Display instruction in Intel syntax att-mnemonic (AT&T syntax only) Display instruction with AT&T mnemonic intel-mnemonic (AT&T syntax only) Display instruction with Intel mnemonic addr64 Assume 64bit address size addr32 Assume 32bit address size addr16 Assume 16bit address size data32 Assume 32bit data size data16 Assume 16bit data size suffix Always display instruction suffix in AT&T syntax amd64 Display instruction in AMD64 ISA intel64 Display instruction in Intel64 ISA Options supported for -P/--private switch: For PE files: header Display the file header sections Display the section headers Report bugs to <https://sourceware.org/bugzilla/>.vscode ➜ /workspaces/c_learning (master) $ nm --help Usage: nm [option(s)] [file(s)] List symbols in [file(s)] (a.out by default). The options are: -a, --debug-syms Display debugger-only symbols -A, --print-file-name Print name of the input file before every symbol -B Same as --format=bsd -C, --demangle[=STYLE] Decode mangled/processed symbol names STYLE can be "none", "auto", "gnu-v3", "java", "gnat", "dlang", "rust" --no-demangle Do not demangle low-level symbol names --recurse-limit Enable a demangling recursion limit. (default) --no-recurse-limit Disable a demangling recursion limit. -D, --dynamic Display dynamic symbols instead of normal symbols -e (ignored) -f, --format=FORMAT Use the output format FORMAT. FORMAT can be `bsd', `sysv', `posix' or 'just-symbols'. The default is `bsd' -g, --extern-only Display only external symbols --ifunc-chars=CHARS Characters to use when displaying ifunc symbols -j, --just-symbols Same as --format=just-symbols -l, --line-numbers Use debugging information to find a filename and line number for each symbol -n, --numeric-sort Sort symbols numerically by address -o Same as -A -p, --no-sort Do not sort the symbols -P, --portability Same as --format=posix -r, --reverse-sort Reverse the sense of the sort --plugin NAME Load the specified plugin -S, --print-size Print size of defined symbols -s, --print-armap Include index for symbols from archive members --quiet Suppress "no symbols" diagnostic --size-sort Sort symbols by size --special-syms Include special symbols in the output --synthetic Display synthetic symbols as well -t, --radix=RADIX Use RADIX for printing symbol values --target=BFDNAME Specify the target object format as BFDNAME -u, --undefined-only Display only undefined symbols -U, --defined-only Display only defined symbols --unicode={default|show|invalid|hex|escape|highlight} Specify how to treat UTF-8 encoded unicode characters -W, --no-weak Ignore weak symbols --without-symbol-versions Do not display version strings after symbol names -X 32_64 (ignored) @FILE Read options from FILE -h, --help Display this information -V, --version Display this program's version number nm: supported targets: elf64-x86-64 elf32-i386 elf32-iamcu elf32-x86-64 pei-i386 pe-x86-64 pei-x86-64 elf64-little elf64-big elf32-little elf32-big pe-bigobj-x86-64 pe-i386 pdb srec symbolsrec verilog tekhex binary ihex plugin Report bugs to <https://sourceware.org/bugzilla/>.vscode ➜ /workspaces/c_learning (master) $ ld --help Usage: ld [options] file... Options: -a KEYWORD Shared library control for HP/UX compatibility -A ARCH, --architecture ARCH Set architecture -b TARGET, --format TARGET Specify target for following input files -c FILE, --mri-script FILE Read MRI format linker script -d, -dc, -dp Force common symbols to be defined --dependency-file FILE Write dependency file --force-group-allocation Force group members out of groups -e ADDRESS, --entry ADDRESS Set start address -E, --export-dynamic Export all dynamic symbols --no-export-dynamic Undo the effect of --export-dynamic --enable-non-contiguous-regions Enable support of non-contiguous memory regions --enable-non-contiguous-regions-warnings Enable warnings when --enable-non-contiguous-regions may cause unexpected behaviour --disable-linker-version Disable the LINKER_VERSION linker script directive --enable-linker-version Enable the LINKER_VERSION linker script directive -EB Link big-endian objects -EL Link little-endian objects -f SHLIB, --auxiliary SHLIB Auxiliary filter for shared object symbol table -F SHLIB, --filter SHLIB Filter for shared object symbol table -g Ignored -G SIZE, --gpsize SIZE Small data size (if no size, same as --shared) -h FILENAME, -soname FILENAME Set internal name of shared library -I PROGRAM, --dynamic-linker PROGRAM Set PROGRAM as the dynamic linker to use --no-dynamic-linker Produce an executable with no program interpreter header -l LIBNAME, --library LIBNAME Search for library LIBNAME -L DIRECTORY, --library-path DIRECTORY Add DIRECTORY to library search path --sysroot=<DIRECTORY> Override the default sysroot location -m EMULATION Set emulation -M, --print-map Print map file on standard output -n, --nmagic Do not page align data -N, --omagic Do not page align data, do not make text readonly --no-omagic Page align data, make text readonly -o FILE, --output FILE Set output file name -O Optimize output file --out-implib FILE Generate import library -plugin PLUGIN Load named plugin -plugin-opt ARG Send arg to last-loaded plugin -flto Ignored for GCC LTO option compatibility -flto-partition= Ignored for GCC LTO option compatibility -fuse-ld= Ignored for GCC linker option compatibility --map-whole-files Ignored for gold option compatibility --no-map-whole-files Ignored for gold option compatibility -Qy Ignored for SVR4 compatibility -q, --emit-relocs Generate relocations in final output -r, -i, --relocatable Generate relocatable output -R FILE, --just-symbols FILE Just link symbols (if directory, same as --rpath) --remap-inputs-file FILE Provide a FILE containing input remapings --remap-inputs PATTERN=FILE Remap input files matching PATTERN to FILE -s, --strip-all Strip all symbols -S, --strip-debug Strip debugging symbols --strip-discarded Strip symbols in discarded sections --no-strip-discarded Do not strip symbols in discarded sections -t, --trace Trace file opens -T FILE, --script FILE Read linker script --default-script FILE, -dT Read default linker script -u SYMBOL, --undefined SYMBOL Start with undefined reference to SYMBOL --require-defined SYMBOL Require SYMBOL be defined in the final output --unique [=SECTION] Don't merge input [SECTION | orphan] sections -Ur Build global constructor/destructor tables -v, --version Print version information -V Print version and emulation information -x, --discard-all Discard all local symbols -X, --discard-locals Discard temporary local symbols (default) --discard-none Don't discard any local symbols -y SYMBOL, --trace-symbol SYMBOL Trace mentions of SYMBOL -Y PATH Default search path for Solaris compatibility -(, --start-group Start a group -), --end-group End a group --accept-unknown-input-arch Accept input files whose architecture cannot be determined --no-accept-unknown-input-arch Reject input files whose architecture is unknown --as-needed Only set DT_NEEDED for following dynamic libs if used --no-as-needed Always set DT_NEEDED for dynamic libraries mentioned on the command line -assert KEYWORD Ignored for SunOS compatibility -Bdynamic, -dy, -call_shared Link against shared libraries -Bstatic, -dn, -non_shared, -static Do not link against shared libraries -Bno-symbolic Don't bind global references locally -Bsymbolic Bind global references locally -Bsymbolic-functions Bind global function references locally --check-sections Check section addresses for overlaps (default) --no-check-sections Do not check section addresses for overlaps --copy-dt-needed-entries Copy DT_NEEDED links mentioned inside DSOs that follow --no-copy-dt-needed-entries Do not copy DT_NEEDED links mentioned inside DSOs that follow --cref Output cross reference table --defsym SYMBOL=EXPRESSION Define a symbol --demangle [=STYLE] Demangle symbol names [using STYLE] --disable-multiple-abs-defs Do not allow multiple definitions with symbols included in filename invoked by -R or --just-symbols --embedded-relocs Generate embedded relocs --fatal-warnings Treat warnings as errors --no-fatal-warnings Do not treat warnings as errors (default) -fini SYMBOL Call SYMBOL at unload-time --force-exe-suffix Force generation of file with .exe suffix --gc-sections Remove unused sections (on some targets) --no-gc-sections Don't remove unused sections (default) --print-gc-sections List removed unused sections on stderr --no-print-gc-sections Do not list removed unused sections --gc-keep-exported Keep exported symbols when removing unused sections --hash-size=<NUMBER> Set default hash table size close to <NUMBER> --help Print option help -init SYMBOL Call SYMBOL at load-time -Map FILE/DIR Write a linker map to FILE or DIR/<outputname>.map --no-define-common Do not define Common storage --no-demangle Do not demangle symbol names --no-keep-memory Use less memory and more disk I/O --no-undefined Do not allow unresolved references in object files -w, --no-warnings Do not display any warning or error messages --allow-shlib-undefined Allow unresolved references in shared libraries --no-allow-shlib-undefined Do not allow unresolved references in shared libs --allow-multiple-definition Allow multiple definitions --error-handling-script SCRIPT Provide a script to help with undefined symbol errors --undefined-version Allow undefined version --no-undefined-version Disallow undefined version --default-symver Create default symbol version --default-imported-symver Create default symbol version for imported symbols --no-warn-mismatch Don't warn about mismatched input files --no-warn-search-mismatch Don't warn on finding an incompatible library --no-whole-archive Turn off --whole-archive --noinhibit-exec Create an output file even if errors occur -nostdlib Only use library directories specified on the command line --oformat TARGET Specify target of output file --print-output-format Print default output format --print-sysroot Print current sysroot -qmagic Ignored for Linux compatibility --reduce-memory-overheads Reduce memory overheads, possibly taking much longer --max-cache-size=SIZE Set the maximum cache size to SIZE bytes --relax Reduce code size by using target specific optimizations --no-relax Do not use relaxation techniques to reduce code size --retain-symbols-file FILE Keep only symbols listed in FILE -rpath PATH Set runtime shared library search path -rpath-link PATH Set link time shared library search path -shared, -Bshareable Create a shared library -pie, --pic-executable Create a position independent executable -no-pie Create a position dependent executable (default) --sort-common [=ascending|descending] Sort common symbols by alignment [in specified order] --sort-section name|alignment Sort sections by name or maximum alignment --spare-dynamic-tags COUNT How many tags to reserve in .dynamic section --split-by-file [=SIZE] Split output sections every SIZE octets --split-by-reloc [=COUNT] Split output sections every COUNT relocs --stats Print memory usage statistics --target-help Display target specific options --task-link SYMBOL Do task level linking --traditional-format Use same format as native linker --section-start SECTION=ADDRESS Set address of named section -Tbss ADDRESS Set address of .bss section -Tdata ADDRESS Set address of .data section -Ttext ADDRESS Set address of .text section -Ttext-segment ADDRESS Set address of text segment -Trodata-segment ADDRESS Set address of rodata segment -Tldata-segment ADDRESS Set address of ldata segment --unresolved-symbols=<method> How to handle unresolved symbols. <method> is: ignore-all, report-all, ignore-in-object-files, ignore-in-shared-libs --verbose [=NUMBER] Output lots of information during link --version-script FILE Read version information script --version-exports-section SYMBOL Take export symbols list from .exports, using SYMBOL as the version. --dynamic-list-data Add data symbols to dynamic list --dynamic-list-cpp-new Use C++ operator new/delete dynamic list --dynamic-list-cpp-typeinfo Use C++ typeinfo dynamic list --dynamic-list FILE Read dynamic list --export-dynamic-symbol SYMBOL Export the specified symbol --export-dynamic-symbol-list FILE Read export dynamic symbol list --warn-common Warn about duplicate common symbols --warn-constructors, --error-execstack, --no-error-execstack, --warn-execstack-objects, --warn-execstack, --no-warn-execstack, --error-rwx-segments, --no-error-rwx-segments, --warn-rwx-segments, --no-warn-rwx-segments Warn if global constructors/destructors are seen --warn-multiple-gp Warn if the multiple GP values are used --warn-once Warn only once per undefined symbol --warn-section-align Warn if start of section changes due to alignment --warn-textrel Warn if output has DT_TEXTREL (default) --warn-alternate-em Warn if an object has alternate ELF machine code --warn-unresolved-symbols Report unresolved symbols as warnings --error-unresolved-symbols Report unresolved symbols as errors --whole-archive Include all objects from following archives --wrap SYMBOL Use wrapper functions for SYMBOL --ignore-unresolved-symbol SYMBOL Unresolved SYMBOL will not cause an error or warning --push-state Push state of flags governing input file handling --pop-state Pop state of flags governing input file handling --print-memory-usage Report target memory usage --orphan-handling =MODE Control how orphan sections are handled. --print-map-discarded Show discarded sections in map file output (default) --no-print-map-discarded Do not show discarded sections in map file output --print-map-locals Show local symbols in map file output --no-print-map-locals Do not show local symbols in map file output (default) --ctf-variables Emit names and types of static variables in CTF --no-ctf-variables Do not emit names and types of static variables in CTF --ctf-share-types=<method> How to share CTF types between translation units. <method> is: share-unconflicted (default), share-duplicated @FILE Read options from FILE ld: supported targets: elf64-x86-64 elf32-i386 elf32-iamcu elf32-x86-64 pei-i386 pe-x86-64 pei-x86-64 elf64-little elf64-big elf32-little elf32-big pe-bigobj-x86-64 pe-i386 pdb srec symbolsrec verilog tekhex binary ihex plugin ld: supported emulations: elf_x86_64 elf32_x86_64 elf_i386 elf_iamcu i386pep i386pe ld: emulation specific options: ELF emulations: --ld-generated-unwind-info Generate exception handling info for PLT --no-ld-generated-unwind-info Don't generate exception handling info for PLT --build-id[=STYLE] Generate build ID note --package-metadata[=JSON] Generate package metadata note --compress-debug-sections=[none|zlib|zlib-gnu|zlib-gabi|zstd] Compress DWARF debug sections Default: none -z common-page-size=SIZE Set common page size to SIZE -z max-page-size=SIZE Set maximum page size to SIZE -z defs Report unresolved symbols in object files -z undefs Ignore unresolved symbols in object files -z muldefs Allow multiple definitions -z stack-size=SIZE Set size of stack segment -z execstack Mark executable as requiring executable stack -z noexecstack Mark executable as not requiring executable stack --warn-execstack-objects Generate a warning if an object file requests an executable stack --warn-execstack Generate a warning if creating an executable stack (default) --no-warn-execstack Do not generate a warning if creating an executable stack --error-execstack Turn warnings about executable stacks into errors --no-error-execstack Do not turn warnings about executable stacks into errors --warn-rwx-segments Generate a warning if a LOAD segment has RWX permissions (default) --no-warn-rwx-segments Do not generate a warning if a LOAD segments has RWX permissions --error-rwx-segments Turn warnings about loadable RWX segments into errors --no-error-rwx-segments Do not turn warnings about loadable RWX segments into errors -z unique-symbol Avoid duplicated local symbol names -z nounique-symbol Keep duplicated local symbol names (default) -z globalaudit Mark executable requiring global auditing -z start-stop-gc Enable garbage collection on __start/__stop -z nostart-stop-gc Don't garbage collect __start/__stop (default) -z start-stop-visibility=V Set visibility of built-in __start/__stop symbols to DEFAULT, PROTECTED, HIDDEN or INTERNAL -z sectionheader Generate section header (default) -z nosectionheader Do not generate section header --audit=AUDITLIB Specify a library to use for auditing -Bgroup Selects group name lookup rules for DSO --disable-new-dtags Disable new dynamic tags --enable-new-dtags Enable new dynamic tags --eh-frame-hdr Create .eh_frame_hdr section --no-eh-frame-hdr Do not create .eh_frame_hdr section --exclude-libs=LIBS Make all symbols in LIBS hidden --hash-style=STYLE Set hash style to sysv/gnu/both. Default: both -P AUDITLIB, --depaudit=AUDITLIB Specify a library to use for auditing dependencies -z combreloc Merge dynamic relocs into one section and sort -z nocombreloc Don't merge dynamic relocs into one section -z global Make symbols in DSO available for subsequently loaded objects -z initfirst Mark DSO to be initialized first at runtime -z interpose Mark object to interpose all DSOs but executable -z unique Mark DSO to be loaded at most once by default, and only in the main namespace -z nounique Don't mark DSO as a loadable at most once -z lazy Mark object lazy runtime binding (default) -z loadfltr Mark object requiring immediate process -z nocopyreloc Don't create copy relocs -z nodefaultlib Mark object not to use default search paths -z nodelete Mark DSO non-deletable at runtime -z nodlopen Mark DSO not available to dlopen -z nodump Mark DSO not available to dldump -z now Mark object non-lazy runtime binding -z origin Mark object requiring immediate $ORIGIN processing at runtime -z relro Create RELRO program header (default) -z norelro Don't create RELRO program header -z separate-code Create separate code program header (default) -z noseparate-code Don't create separate code program header -z common Generate common symbols with STT_COMMON type -z nocommon Generate common symbols with STT_OBJECT type -z text Treat DT_TEXTREL in output as error -z notext Don't treat DT_TEXTREL in output as error -z textoff Don't treat DT_TEXTREL in output as error elf_x86_64: -z noextern-protected-data Do not treat protected data symbol as external -z indirect-extern-access Enable indirect external access -z noindirect-extern-access Disable indirect external access (default) -z dynamic-undefined-weak Make undefined weak symbols dynamic -z nodynamic-undefined-weak Do not make undefined weak symbols dynamic -z noreloc-overflow Disable relocation overflow check -z call-nop=PADDING Use PADDING as 1-byte NOP for branch -z ibtplt Generate IBT-enabled PLT entries -z ibt Generate GNU_PROPERTY_X86_FEATURE_1_IBT -z shstk Generate GNU_PROPERTY_X86_FEATURE_1_SHSTK -z cet-report=[none|warning|error] (default: none) Report missing IBT and SHSTK properties -z report-relative-reloc Report relative relocations -z x86-64-{baseline|v[234]} Mark x86-64-{baseline|v[234]} ISA level as needed -z lam-u48 Generate GNU_PROPERTY_X86_FEATURE_1_LAM_U48 -z lam-u48-report=[none|warning|error] (default: none) Report missing LAM_U48 property -z lam-u57 Generate GNU_PROPERTY_X86_FEATURE_1_LAM_U57 -z lam-u57-report=[none|warning|error] (default: none) Report missing LAM_U57 property -z lam-report=[none|warning|error] (default: none) Report missing LAM_U48 and LAM_U57 properties -z mark-plt Mark PLT with dynamic tags -z nomark-plt Do not mark PLT with dynamic tags (default) -z pack-relative-relocs Pack relative relocations -z nopack-relative-relocs Do not pack relative relocations (default) elf32_x86_64: -z noextern-protected-data Do not treat protected data symbol as external -z indirect-extern-access Enable indirect external access -z noindirect-extern-access Disable indirect external access (default) -z dynamic-undefined-weak Make undefined weak symbols dynamic -z nodynamic-undefined-weak Do not make undefined weak symbols dynamic -z noreloc-overflow Disable relocation overflow check -z call-nop=PADDING Use PADDING as 1-byte NOP for branch -z ibtplt Generate IBT-enabled PLT entries -z ibt Generate GNU_PROPERTY_X86_FEATURE_1_IBT -z shstk Generate GNU_PROPERTY_X86_FEATURE_1_SHSTK -z cet-report=[none|warning|error] (default: none) Report missing IBT and SHSTK properties -z report-relative-reloc Report relative relocations -z x86-64-{baseline|v[234]} Mark x86-64-{baseline|v[234]} ISA level as needed -z mark-plt Mark PLT with dynamic tags -z nomark-plt Do not mark PLT with dynamic tags (default) -z pack-relative-relocs Pack relative relocations -z nopack-relative-relocs Do not pack relative relocations (default) elf_i386: -z noextern-protected-data Do not treat protected data symbol as external -z indirect-extern-access Enable indirect external access -z noindirect-extern-access Disable indirect external access (default) -z dynamic-undefined-weak Make undefined weak symbols dynamic -z nodynamic-undefined-weak Do not make undefined weak symbols dynamic -z call-nop=PADDING Use PADDING as 1-byte NOP for branch -z ibtplt Generate IBT-enabled PLT entries -z ibt Generate GNU_PROPERTY_X86_FEATURE_1_IBT -z shstk Generate GNU_PROPERTY_X86_FEATURE_1_SHSTK -z cet-report=[none|warning|error] (default: none) Report missing IBT and SHSTK properties -z report-relative-reloc Report relative relocations -z x86-64-{baseline|v[234]} Mark x86-64-{baseline|v[234]} ISA level as needed -z pack-relative-relocs Pack relative relocations -z nopack-relative-relocs Do not pack relative relocations (default) elf_iamcu: -z noextern-protected-data Do not treat protected data symbol as external -z indirect-extern-access Enable indirect external access -z noindirect-extern-access Disable indirect external access (default) -z dynamic-undefined-weak Make undefined weak symbols dynamic -z nodynamic-undefined-weak Do not make undefined weak symbols dynamic -z call-nop=PADDING Use PADDING as 1-byte NOP for branch i386pep: --base_file <basefile> Generate a base file for relocatable DLLs --dll Set image base to the default for DLLs --file-alignment <size> Set file alignment --heap <size> Set initial size of the heap --image-base <address> Set start address of the executable --major-image-version <number> Set version number of the executable --major-os-version <number> Set minimum required OS version --major-subsystem-version <number> Set minimum required OS subsystem version --minor-image-version <number> Set revision number of the executable --minor-os-version <number> Set minimum required OS revision --minor-subsystem-version <number> Set minimum required OS subsystem revision --section-alignment <size> Set section alignment --stack <size> Set size of the initial stack --subsystem <name>[:<version>] Set required OS subsystem [& version] --support-old-code Support interworking with old code --[no-]leading-underscore Set explicit symbol underscore prefix mode --[no-]insert-timestamp Use a real timestamp rather than zero (default) This makes binaries non-deterministic --add-stdcall-alias Export symbols with and without @nn --disable-stdcall-fixup Don't link _sym to _sym@nn --enable-stdcall-fixup Link _sym to _sym@nn without warnings --exclude-symbols sym,sym,... Exclude symbols from automatic export --exclude-all-symbols Exclude all symbols from automatic export --exclude-libs lib,lib,... Exclude libraries from automatic export --exclude-modules-for-implib mod,mod,... Exclude objects, archive members from auto export, place into import library instead --export-all-symbols Automatically export all globals to DLL --kill-at Remove @nn from exported symbols --output-def <file> Generate a .DEF file for the built DLL --warn-duplicate-exports Warn about duplicate exports --compat-implib Create backward compatible import libs; create __imp_<SYMBOL> as well --enable-auto-image-base Automatically choose image base for DLLs unless user specifies one --disable-auto-image-base Do not auto-choose image base (default) --dll-search-prefix=<string> When linking dynamically to a dll without an importlib, use <string><basename>.dll in preference to lib<basename>.dll --enable-auto-import Do sophisticated linking of _sym to __imp_sym for DATA references --disable-auto-import Do not auto-import DATA items from DLLs --enable-runtime-pseudo-reloc Work around auto-import limitations by adding pseudo-relocations resolved at runtime --disable-runtime-pseudo-reloc Do not add runtime pseudo-relocations for auto-imported DATA --enable-extra-pep-debug Enable verbose debug output when building or linking to DLLs (esp. auto-import) --enable-long-section-names Use long COFF section names even in executable image files --disable-long-section-names Never use long COFF section names, even in object files --[disable-]high-entropy-va Image is compatible with 64-bit address space layout randomization (ASLR) --[disable-]dynamicbase Image base address may be relocated using address space layout randomization (ASLR) --enable-reloc-section Create the base relocation table --disable-reloc-section Do not create the base relocation table --[disable-]forceinteg Code integrity checks are enforced --[disable-]nxcompat Image is compatible with data execution prevention --[disable-]no-isolation Image understands isolation but do not isolate the image --[disable-]no-seh Image does not use SEH; no SE handler may be called in this image --[disable-]no-bind Do not bind this image --[disable-]wdmdriver Driver uses the WDM model --[disable-]tsaware Image is Terminal Server aware --build-id[=STYLE] Generate build ID i386pe: --base_file <basefile> Generate a base file for relocatable DLLs --dll Set image base to the default for DLLs --file-alignment <size> Set file alignment --heap <size> Set initial size of the heap --image-base <address> Set start address of the executable --major-image-version <number> Set version number of the executable --major-os-version <number> Set minimum required OS version --major-subsystem-version <number> Set minimum required OS subsystem version --minor-image-version <number> Set revision number of the executable --minor-os-version <number> Set minimum required OS revision --minor-subsystem-version <number> Set minimum required OS subsystem revision --section-alignment <size> Set section alignment --stack <size> Set size of the initial stack --subsystem <name>[:<version>] Set required OS subsystem [& version] --support-old-code Support interworking with old code --[no-]leading-underscore Set explicit symbol underscore prefix mode --thumb-entry=<symbol> Set the entry point to be Thumb <symbol> --[no-]insert-timestamp Use a real timestamp rather than zero (default). This makes binaries non-deterministic --add-stdcall-alias Export symbols with and without @nn --disable-stdcall-fixup Don't link _sym to _sym@nn --enable-stdcall-fixup Link _sym to _sym@nn without warnings --exclude-symbols sym,sym,... Exclude symbols from automatic export --exclude-all-symbols Exclude all symbols from automatic export --exclude-libs lib,lib,... Exclude libraries from automatic export --exclude-modules-for-implib mod,mod,... Exclude objects, archive members from auto export, place into import library instead. --export-all-symbols Automatically export all globals to DLL --kill-at Remove @nn from exported symbols --output-def <file> Generate a .DEF file for the built DLL --warn-duplicate-exports Warn about duplicate exports --compat-implib Create backward compatible import libs; create __imp_<SYMBOL> as well. --enable-auto-image-base[=<address>] Automatically choose image base for DLLs (optionally starting with address) unless specifically set with --image-base --disable-auto-image-base Do not auto-choose image base. (default) --dll-search-prefix=<string> When linking dynamically to a dll without an importlib, use <string><basename>.dll in preference to lib<basename>.dll --enable-auto-import Do sophisticated linking of _sym to __imp_sym for DATA references --disable-auto-import Do not auto-import DATA items from DLLs --enable-runtime-pseudo-reloc Work around auto-import limitations by adding pseudo-relocations resolved at runtime. --disable-runtime-pseudo-reloc Do not add runtime pseudo-relocations for auto-imported DATA. --enable-extra-pe-debug Enable verbose debug output when building or linking to DLLs (esp. auto-import) --large-address-aware Executable supports virtual addresses greater than 2 gigabytes --disable-large-address-aware Executable does not support virtual addresses greater than 2 gigabytes --enable-long-section-names Use long COFF section names even in executable image files --disable-long-section-names Never use long COFF section names, even in object files --[disable-]dynamicbase Image base address may be relocated using address space layout randomization (ASLR) --enable-reloc-section Create the base relocation table --disable-reloc-section Do not create the base relocation table --[disable-]forceinteg Code integrity checks are enforced --[disable-]nxcompat Image is compatible with data execution prevention --[disable-]no-isolation Image understands isolation but do not isolate the image --[disable-]no-seh Image does not use SEH. No SE handler may be called in this image --[disable-]no-bind Do not bind this image --[disable-]wdmdriver Driver uses the WDM model --[disable-]tsaware Image is Terminal Server aware --build-id[=STYLE] Generate build ID Report bugs to <https://sourceware.org/bugzilla/>vscode ➜ /workspaces/c_learning (master) $ ldd --help Usage: ldd [OPTION]... FILE... --help print this help and exit --version print version information and exit -d, --data-relocs process data relocations -r, --function-relocs process data and function relocations -u, --unused print unused direct dependencies -v, --verbose print all information For bug reporting instructions, please see: <https://bugs.launchpad.net/ubuntu/+source/glibc/+bugs>.答疑 #
静态共享库 #
延迟绑定PLT #
动态链接时进程堆栈初始化信息 #
如 l-dynamic/Makefile 一样构建程序 Program1，然后使用 gdb 进行辅佐验证。或者手动扫描栈内存获取相关数据。
使用 GDB 直接获取 #
使用命令

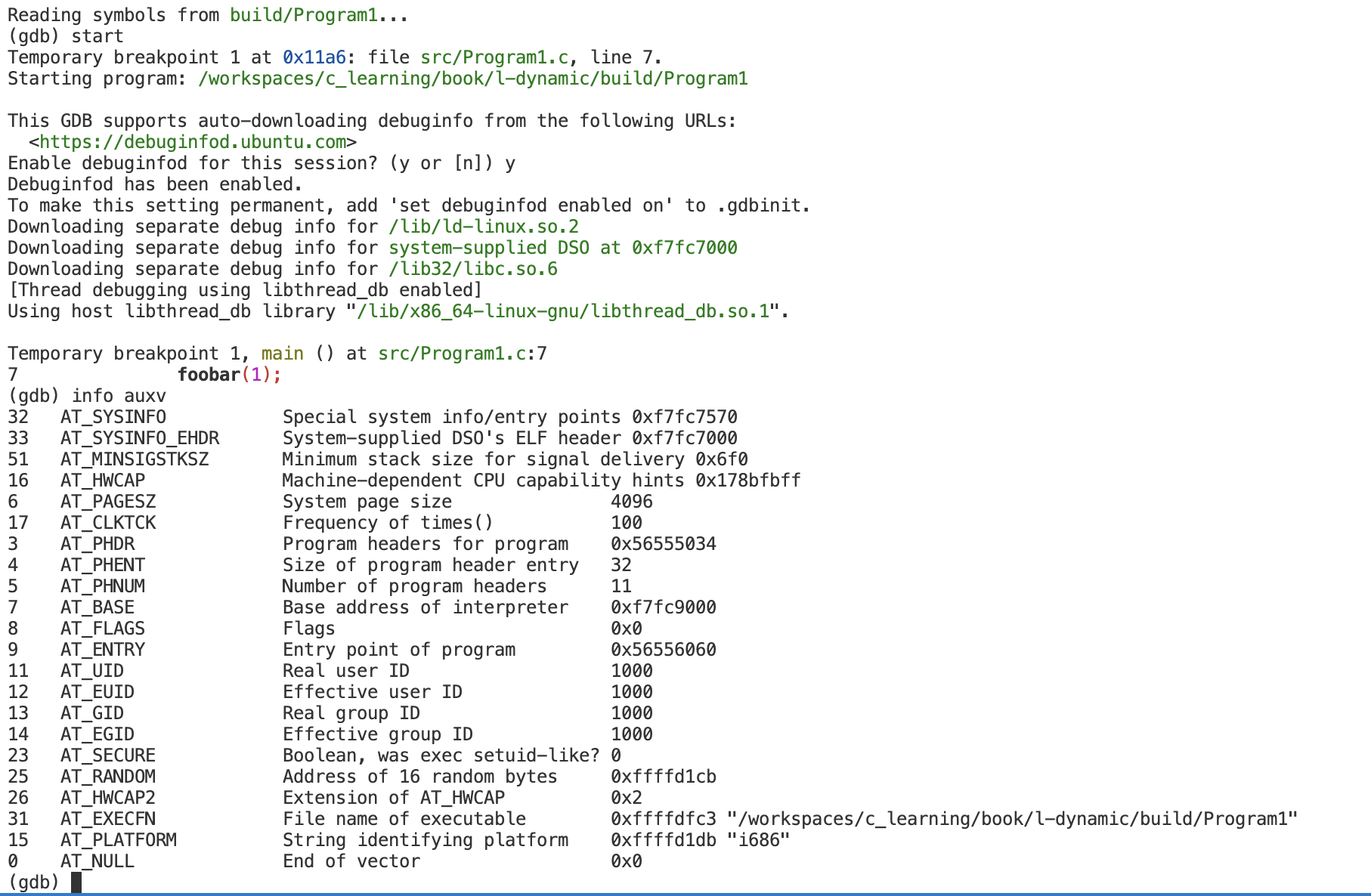

gdb build/Program1启动 gdb。然后使用命令start启动程序。执行info auxv查看辅助信息数组(Auxiliary Vector)。
手动扫描栈内存获取 #
手动获取步骤如下：
1、

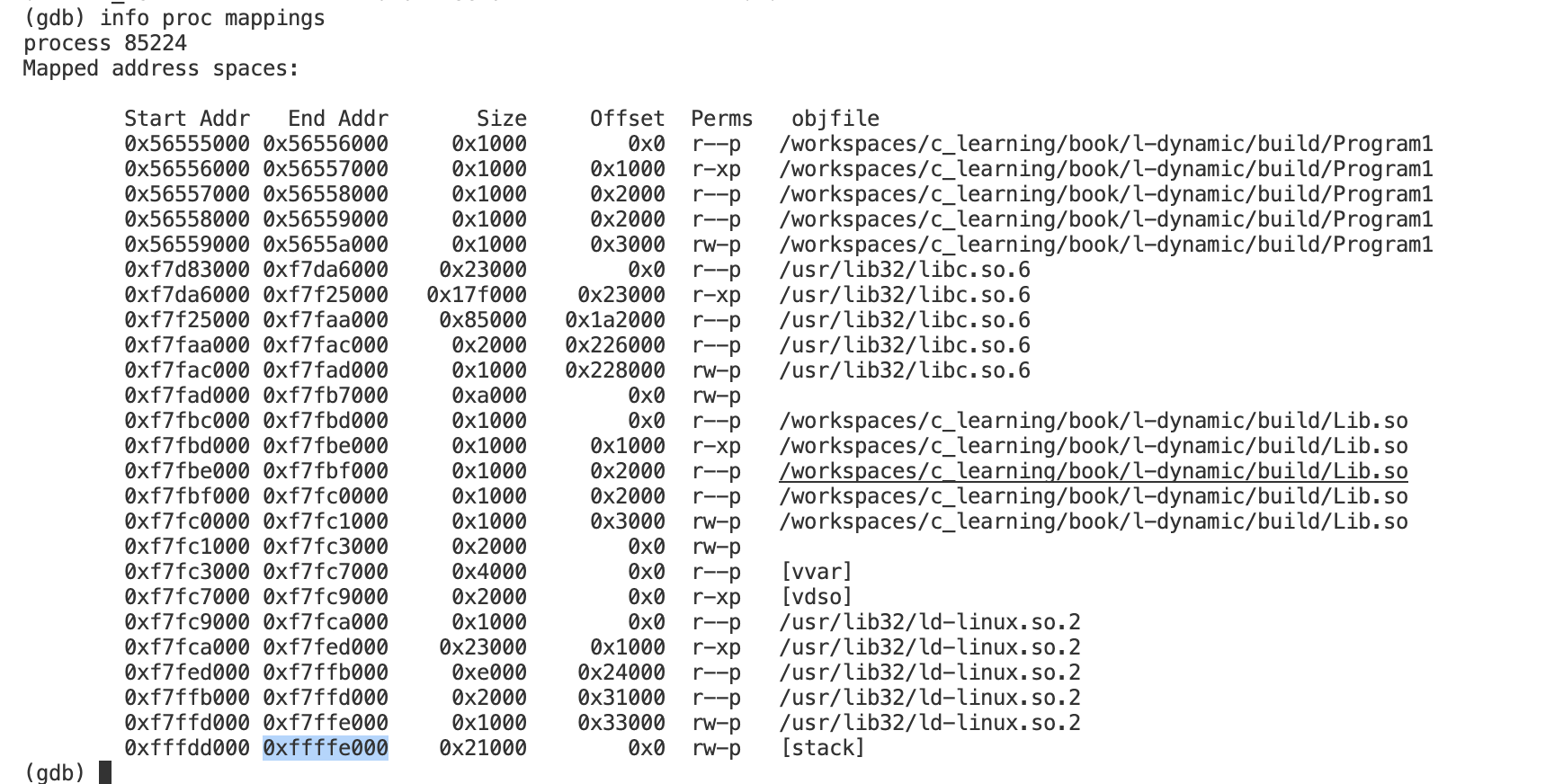

info proc mappings查看整个程序内存映射，得知 stack 的起始（0xfffdd000，0xffffe000）。
2、计算当前栈顶位置

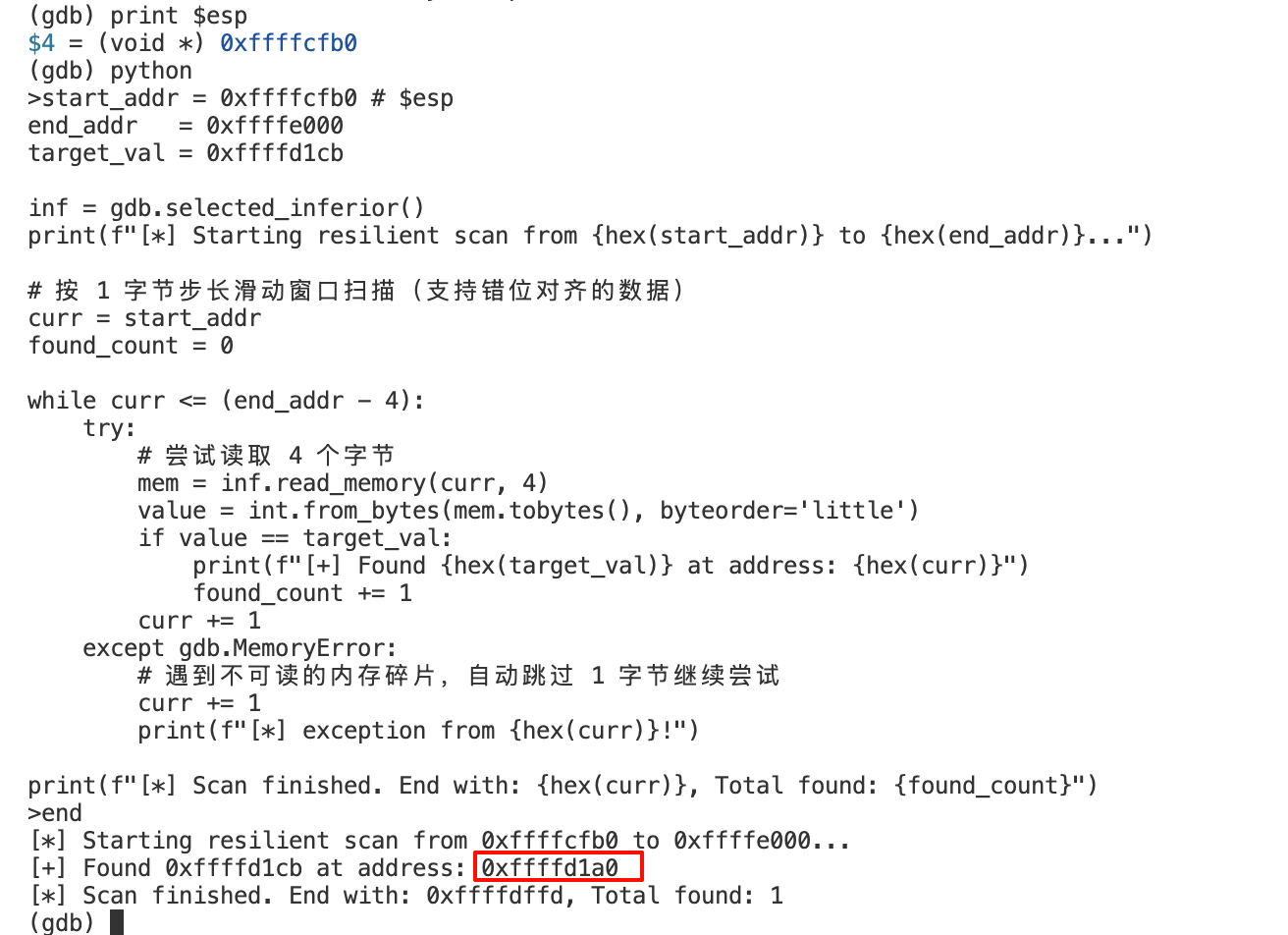

print $esp，然后扫描至栈底。匹配内容为info auxv里面的 AT_PLATFORM = 0xffffd1cb，使用 find 有问题，所以改为 python 找到大致位置 0xffffd1a0。扫描代码
start_addr = 0xffffcfb0 # $esp end_addr = 0xffffe000 target_val = 0xffffd1cb inf = gdb.selected_inferior() print(f"[*] Starting resilient scan from {hex(start_addr)} to {hex(end_addr)}...") # 按 1 字节步长滑动窗口扫描（支持错位对齐的数据） curr = start_addr found_count = 0 while curr <= (end_addr - 4): try: # 尝试读取 4 个字节 mem = inf.read_memory(curr, 4) value = int.from_bytes(mem.tobytes(), byteorder='little') if value == target_val: print(f"[+] Found {hex(target_val)} at address: {hex(curr)}") found_count += 1 curr += 1 except gdb.MemoryError: # 遇到不可读的内存碎片，自动跳过 1 字节继续尝试 curr += 1 print(f"[*] exception from {hex(curr)}!") print(f"[*] Scan finished. End with: {hex(curr)}, Total found: {found_count}")

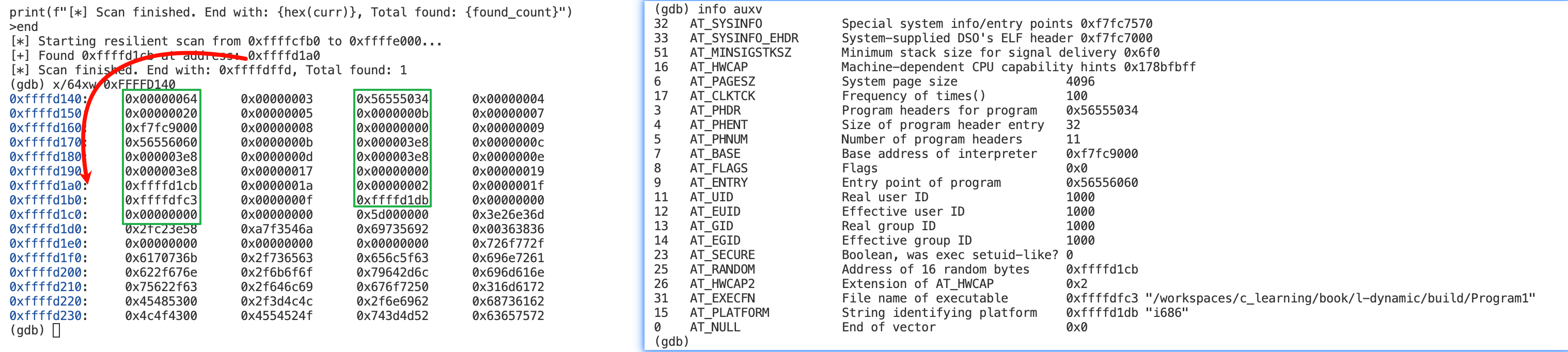

3、然后将 0xffffd1a0 往下放 0x60 个字节，就是多看附近 6 行内容，
echo 'ibase=16;obase=10; FFFFD1A0 - 60' | bc= FFFFD140，就可以发现数据都在附近。
