    FGJ: Create:2023/11/19 Update: [2024-11-21]

    example #

    1. 导入需要的依赖包 #
    <!-- https://mvnrepository.com/artifact/net.java.dev.jna/jna -->
    <dependency>
        <groupId>net.java.dev.jna</groupId>
        <artifactId>jna</artifactId>
        <version>5.13.0</version>
    </dependency>

    2. 编写代码 #

    The following program loads the local C standard library implementation and uses it to call the printf function.
    Note: The following code is portable and works the same on Windows and POSIX (Linux / Unix / macOS) platforms.

    import com.sun.jna.Library;
    import com.sun.jna.Native;
    import com.sun.jna.Platform;

    /** Simple example of native library declaration and usage. */
    public class HelloWorld {
        public interface CLibrary extends Library {
            CLibrary INSTANCE = (CLibrary) Native.loadLibrary(
                (Platform.isWindows() ? "msvcrt" : "c"), CLibrary.class);
            void printf(String format, Object... args);
        }

        public static void main(String[] args) {
            CLibrary.INSTANCE.printf("Hello, World from JNA\n");
            for (int i = 0; i < args.length; i++) {
                CLibrary.INSTANCE.printf("Argument %d: %s\n", i, args[i]);
            }
        }
    }

    3. 编译 #
    $ javac -cp .:jna-5.13.0.jar HelloWorld.java

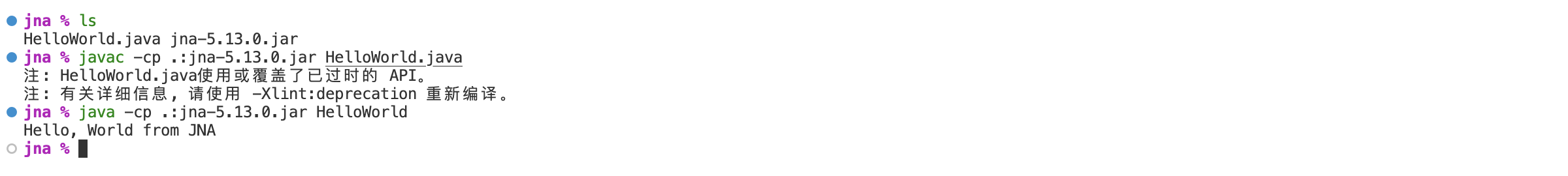

    4. 运行 #
    $ java -cp .:jna-5.13.0.jar HelloWorld

    5. 记录 #

    1. 编写HelloJNA.java #
    import com.sun.jna.Library;
    import com.sun.jna.Native;

    public class HelloJNA {
        /**
         * 定义一个接口,默认的是继承Library ,如果动态链接库里的函数是以stdcall方式输出的,那么就继承StdCallLibrary
         * 这个接口对应一个动态链接文件
         */
        public interface LibraryAdd extends Library {
            // 可以使用相对路径进行加载。
            LibraryAdd LIBRARY_ADD = Native.load("hello", LibraryAdd.class);

            /**
             * 接口中只需要定义你要用到的函数或者公共变量,不需要的可以不定义
             * 映射libadd.so里面的函数,注意类型要匹配
             */
            int add(int a, int b);
        }

        public static void main(String[] args) {
            // 调用so映射的接口函数
            int add = LibraryAdd.LIBRARY_ADD.add(10, 15);
            System.out.println("result:" + add);
        }
    }


    编译可以和第2步编译动态链接库并行,互不相关
    $ javac -cp .:jna-5.13.0.jar HelloJNA.java

    2. 编写动态链接库C代码 hello.c #
    int add(int a, int b){
        return a + b;
    }


    使用$ gcc -dynamiclib -o libhello.dylib hello.c 编译成动态链接库 libhello.dylib

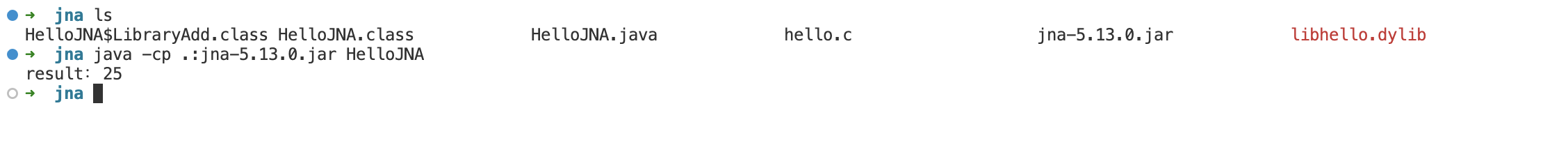

    3. 运行 #

    $ java -cp .:jna-5.13.0.jar HelloJNA

    4. 记录 #

    Reference #
